Fuel Feed Front Pipe Replacement

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Relieve the fuel system pressure. Fuel Pressure Relief Intake Manifold Cover Replacement

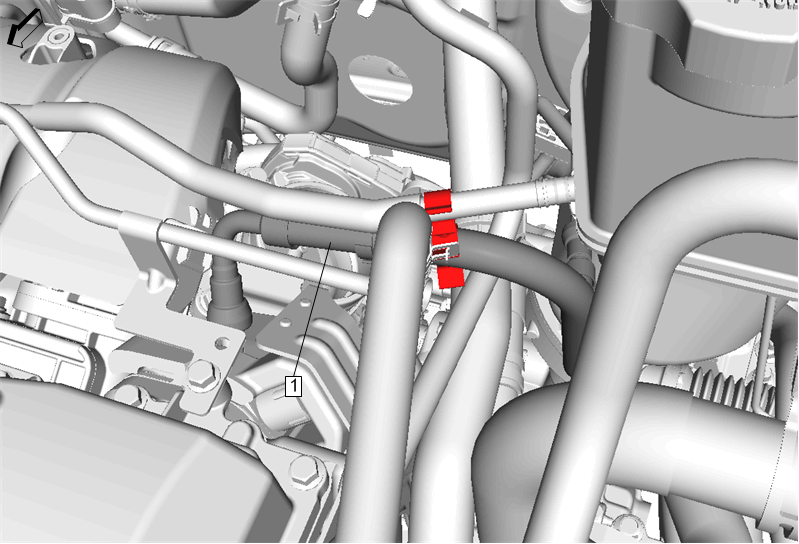

1	Fuel Feed Front Pipe Procedure Disconnect quick connect fittings and remove from retainer. Metal Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Feed Front Pipe
Procedure
Disconnect quick connect fittings and remove from retainer. Metal Collar Quick Connect Fitting Service
