Fuel Tank Filler Hose Replacement

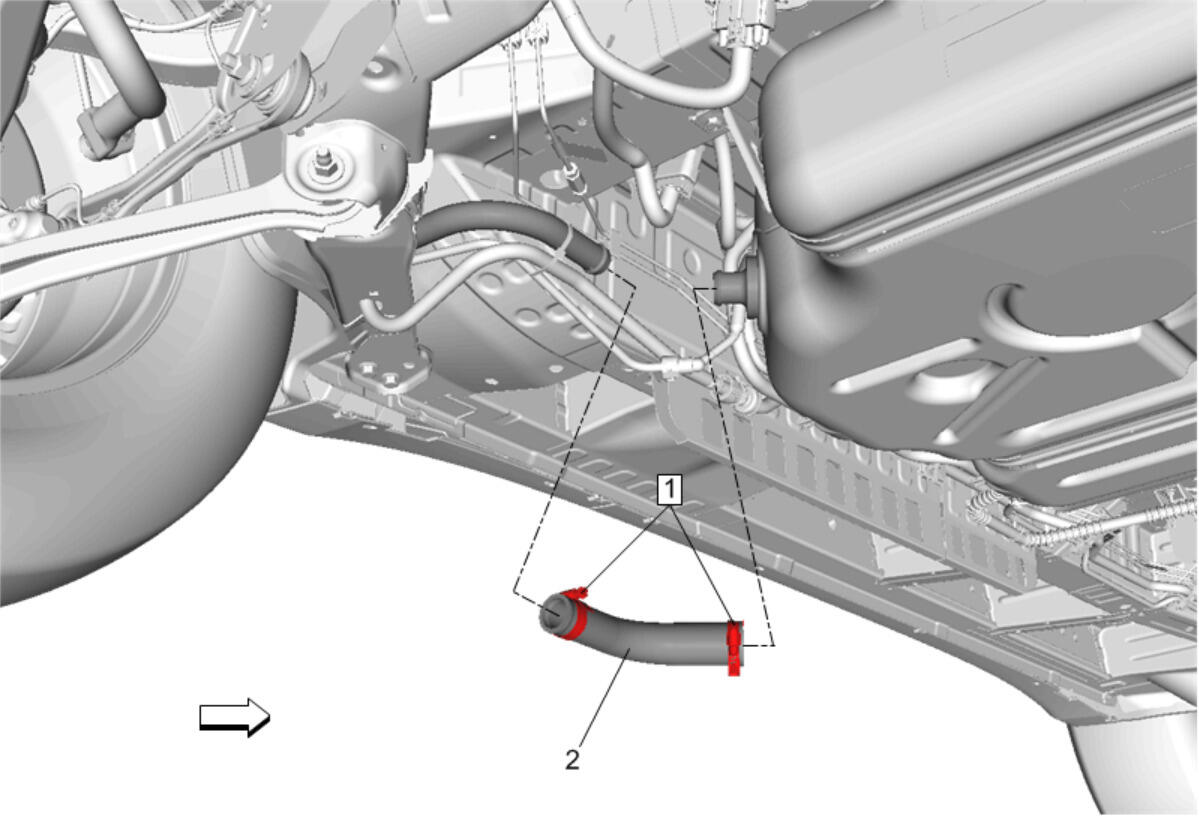

| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Fuel Tank Filler Hose Clamp [2x]
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Fuel Tank Filler Hose |
