Fuel Tank Front Shield Replacement

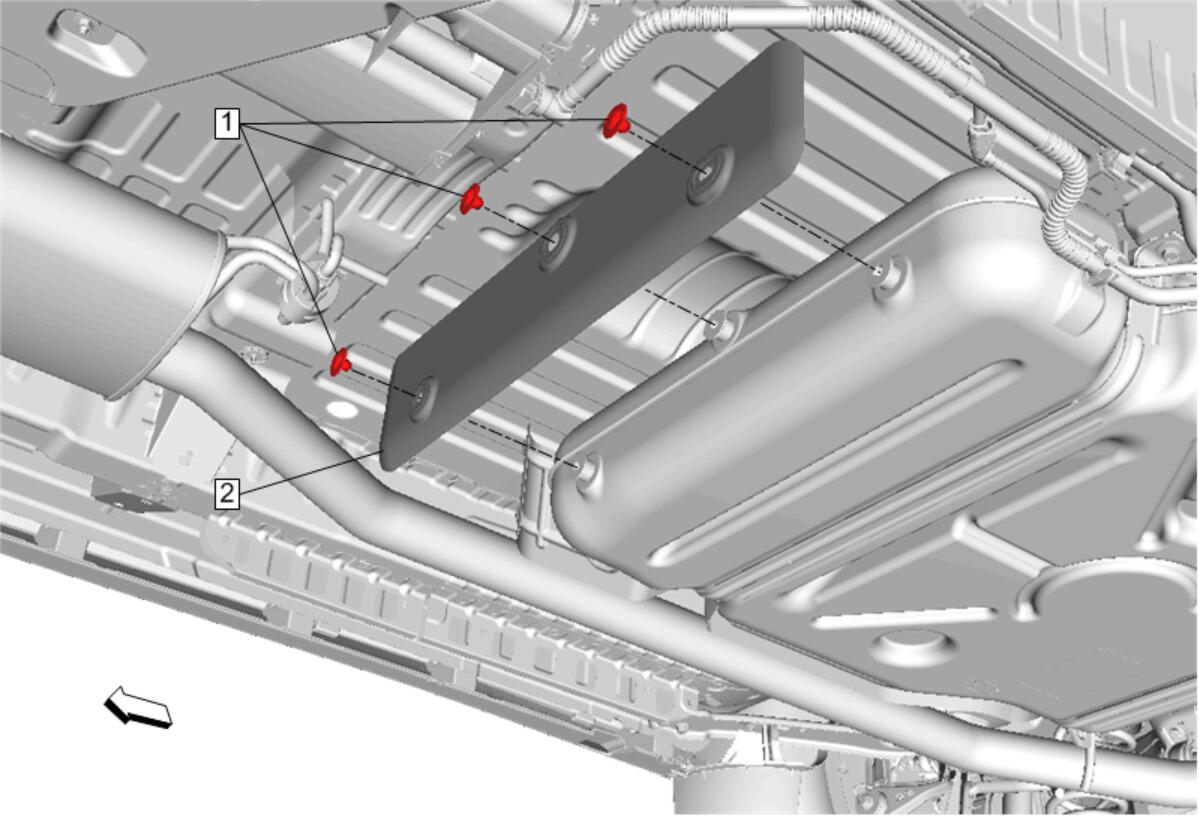

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Tank Heat Shield Retainer [3x] CAUTION: Refer to Fastener Caution .
2	Fuel Tank Front Shield
