Fuel Tank Shield Replacement

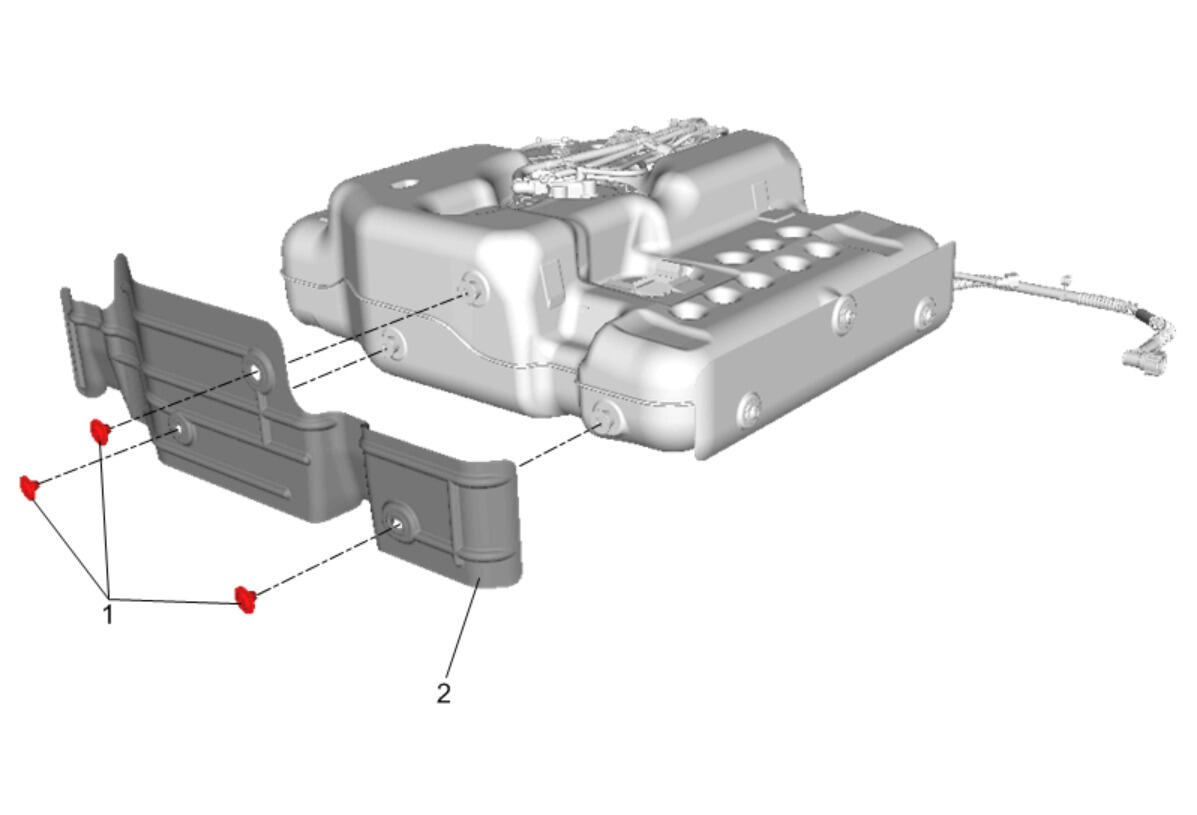

| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Tank Replacement |
|
| 1 | Fuel Tank Heat Shield Retainer [3x]
CAUTION:
Refer to Fastener Caution . |
| 2 | Fuel Tank Shield |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Tank Replacement |
|
| 1 | Fuel Tank Heat Shield Retainer [3x]
CAUTION:
Refer to Fastener Caution . |
| 2 | Fuel Tank Shield |
