Intake Air Splash Shield Replacement

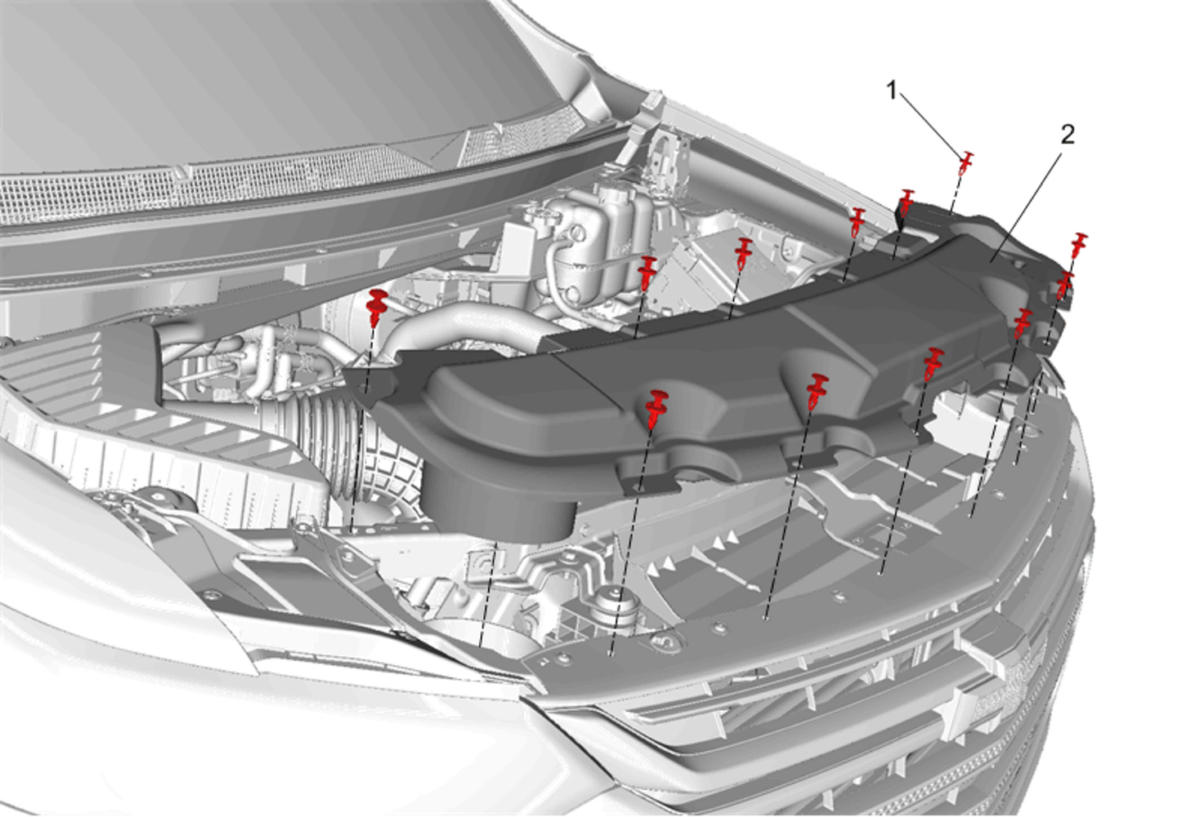

GM4839651

Callout	Component Name
1	Intake Air Splash Shield Retainer [12x] CAUTION: Refer to Fastener Caution .
2	Intake Air Splash Shield
