Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

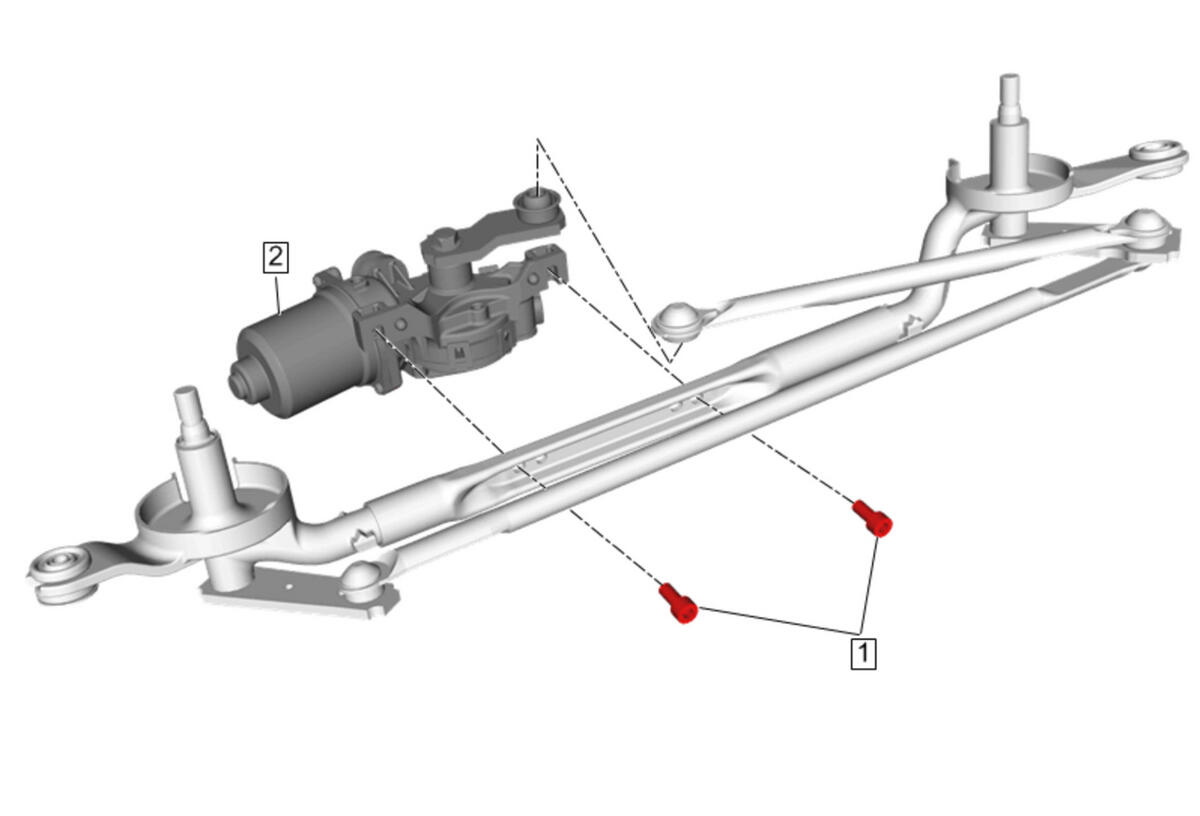

Callout	Component Name
Preliminary Procedure Windshield Wiper Transmission Replacement
1	Windshield Wiper Motor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper Motor Procedure Use the B0-39232 separator to separate the transmission drive link from the wiper motor crank arm ball stud. Use the B0-39529 installer to install the transmission drive link onto the wiper motor crank arm ball stud. NOTE: Apply a small amount of grease to the inner cup on the transmission link to aid in installation. Special Tools B0-39232 Wiper Linkage Separator B0-39529 Wiper Linkage Installer Equivalent regional tools:Special Tools

Callout

Component Name

Preliminary Procedure
Windshield Wiper Transmission Replacement

Windshield Wiper Motor Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Windshield Wiper Motor

Procedure

Use the B0-39232 separator to separate the transmission drive link from the wiper motor crank arm ball stud.
Use the B0-39529 installer to install the transmission drive link onto the wiper motor crank arm ball stud.

NOTE:

Apply a small amount of grease to the inner cup on the transmission link to aid in installation.

Special Tools

B0-39232 Wiper Linkage Separator
B0-39529 Wiper Linkage Installer

Equivalent regional tools:Special Tools
