Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the door handle (1) to the door (2) as follows:
1. Insert the door handle into the door handle pocket.
2. Slide the door handle forward securing it into the door handle bracket.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Handle will snap back to flush condition, continue to turn the fastener in the clockwise (right) direction until proper torque is reached.

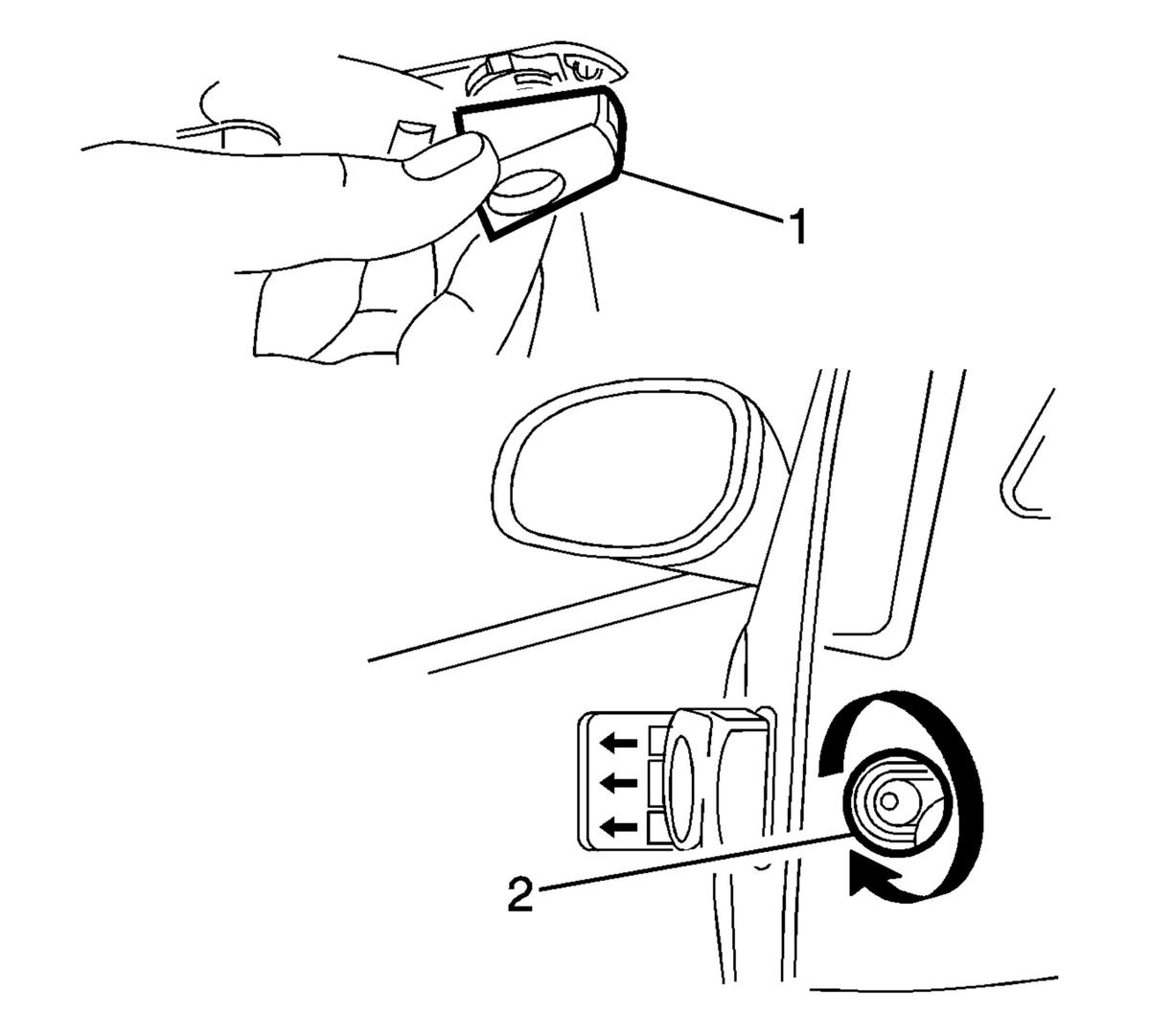

Install the bezel with cylinder/cover and blank cylinder (1) in the door.

Hold the bezel or cover flush to the door sheet metal and turn the cylinder clamp screw (2) until proper torque is reached.
Tighten the screw to 6 N.m (53 lb in).
Courtesy of GENERAL MOTORS COMPANY

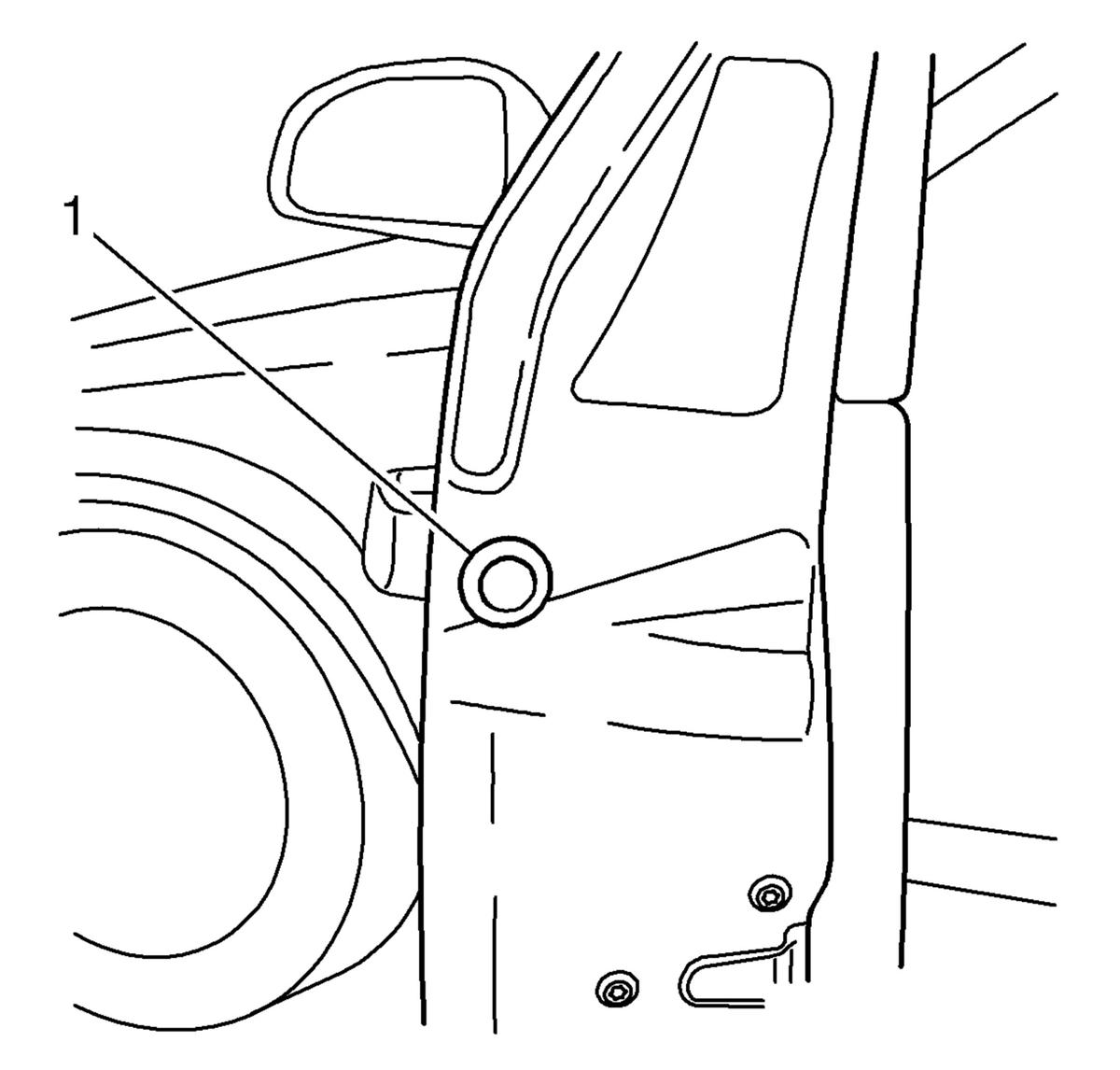

Install the cover cap that conceals the screw (1) to the inside edge of the door.
Ensure that the door lock system operates properly.
