Hybrid Control Electronic Component Views

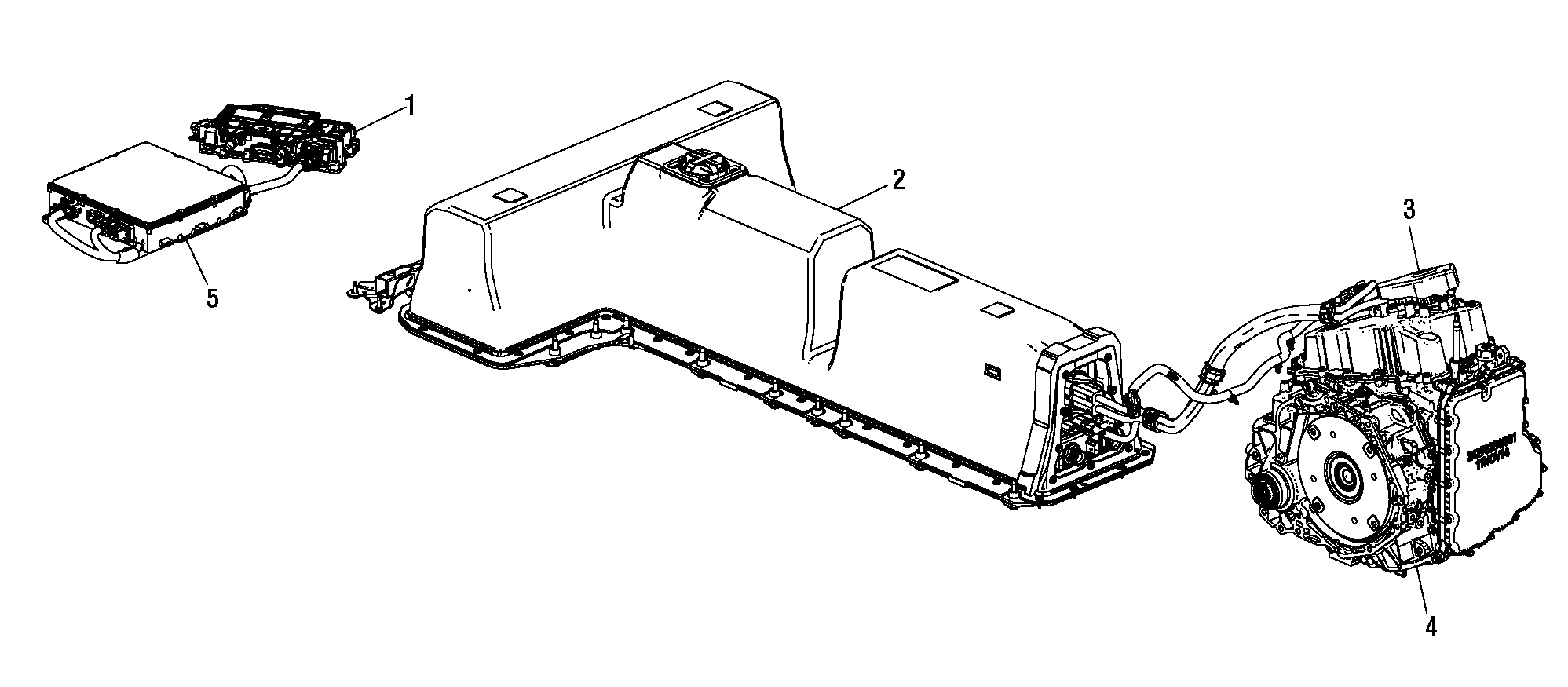

Fig 1: Identifying Hybrid Control Electronic Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	K1 14V Power Module
2	High Voltage Battery
3	T6 Power Inverter Module
4	T12 Automatic Transmission Assembly
5	T18 Battery Charger
