Front Side Door Locking Rod Clip Replacement

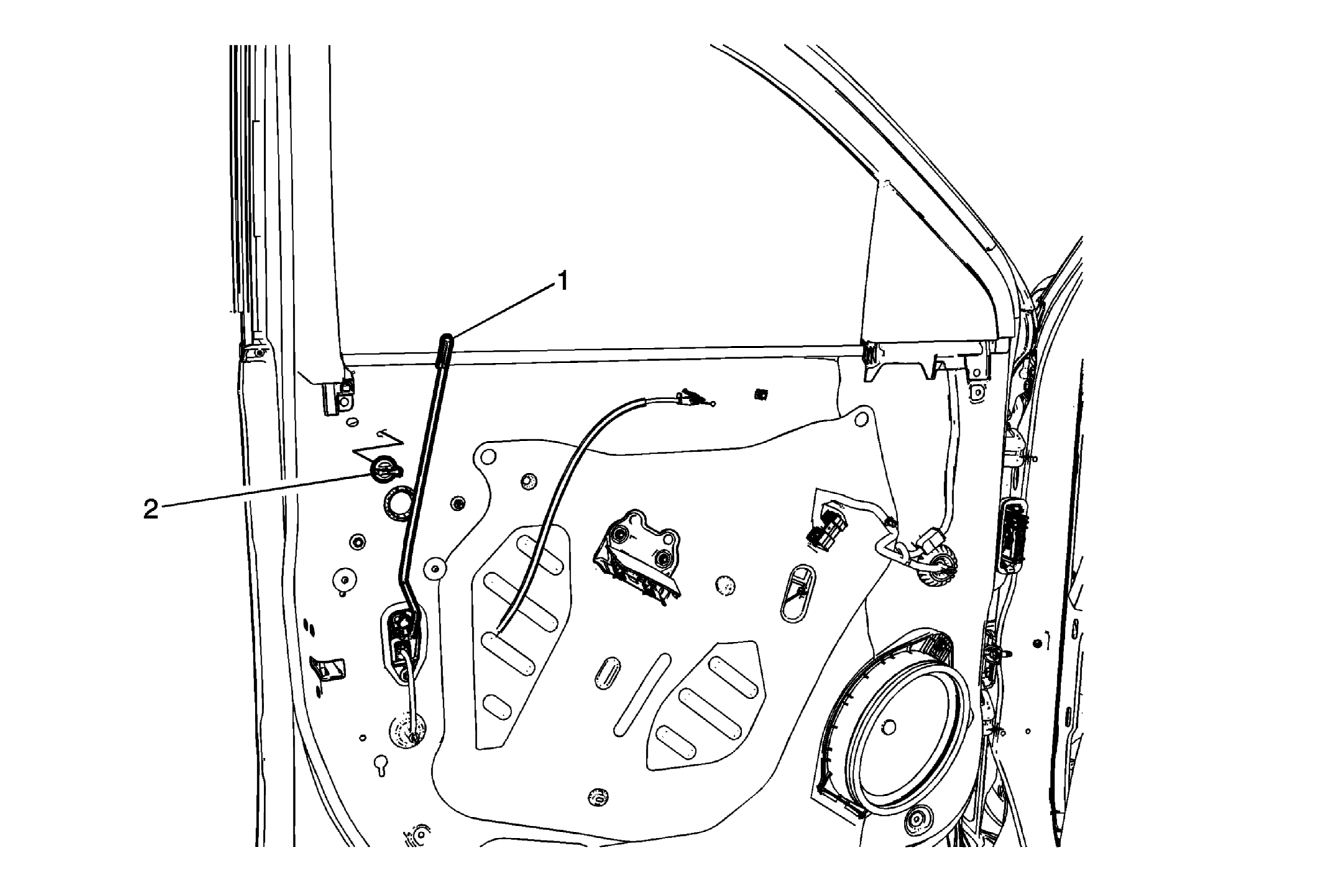

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Locking Rod Knob Procedure Separate the front side door locking rod knob from the clip and move to the side. |
| 2 | Front Side Door Locking Rod Clip Procedure Turn the front side door locking rod clip 180 degrees and pull from the door.
NOTE:
Inspect the front side door lock for proper operating before installing the door trim. |
