Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

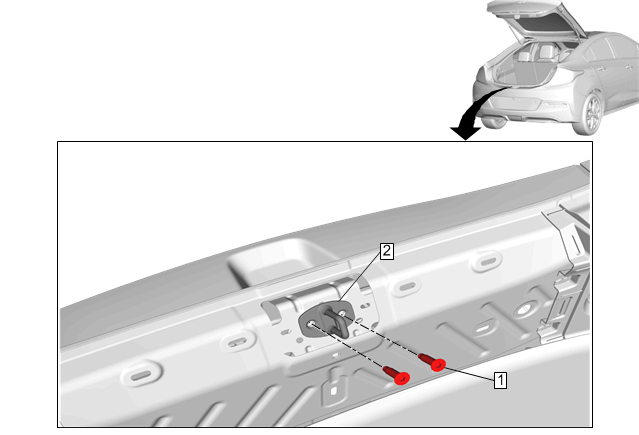

Callout	Component Name
Preliminary Procedure  Rear End Trim Finish Panel Opening Cover Replacement
1	Liftgate Latch Striker Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Liftgate Latch Striker Procedure  Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
