Home › Chevrolet › 2018 › Volt Premier › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Driver

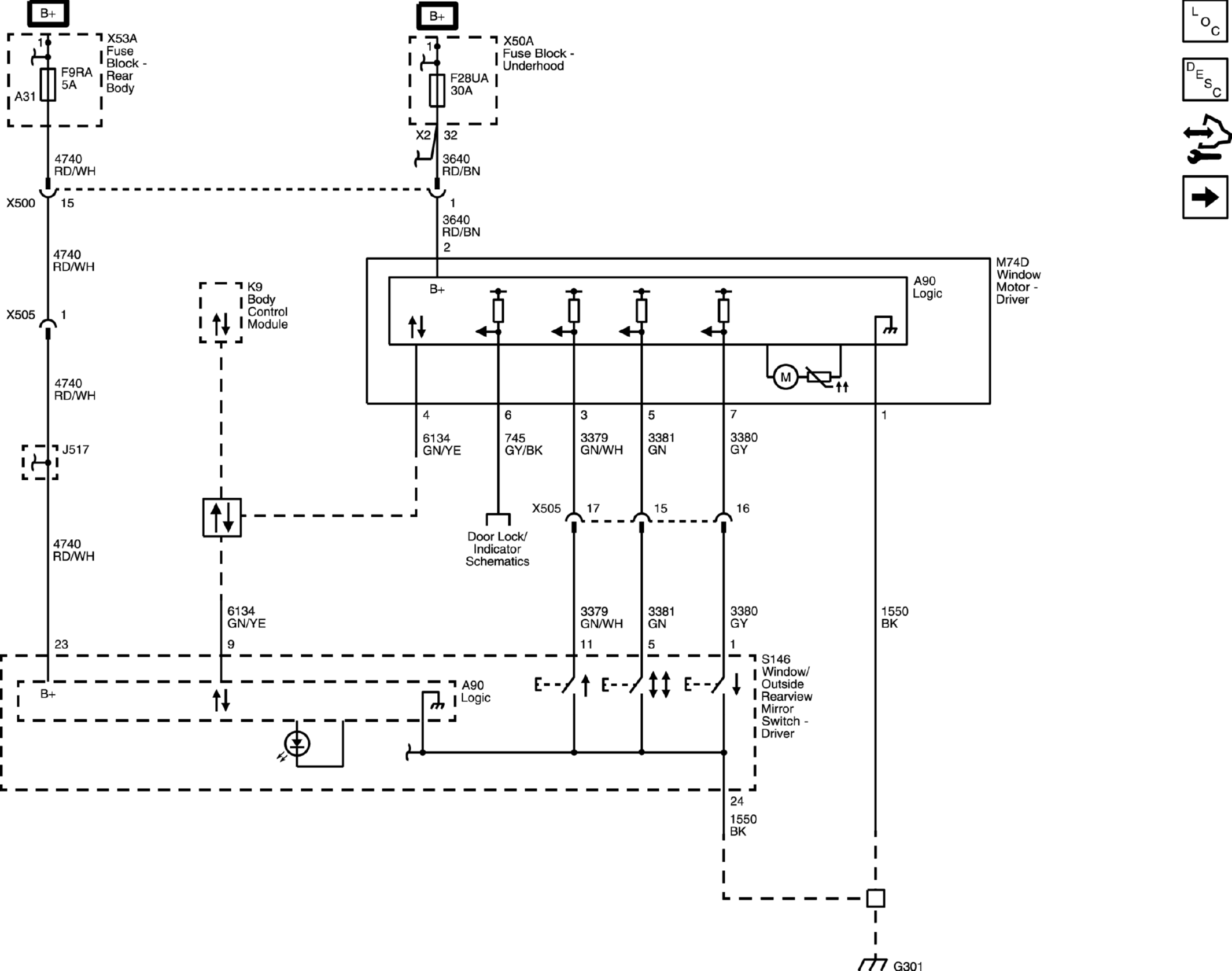

Moveable Window Wiring Schematics: Driver

GM4665687
