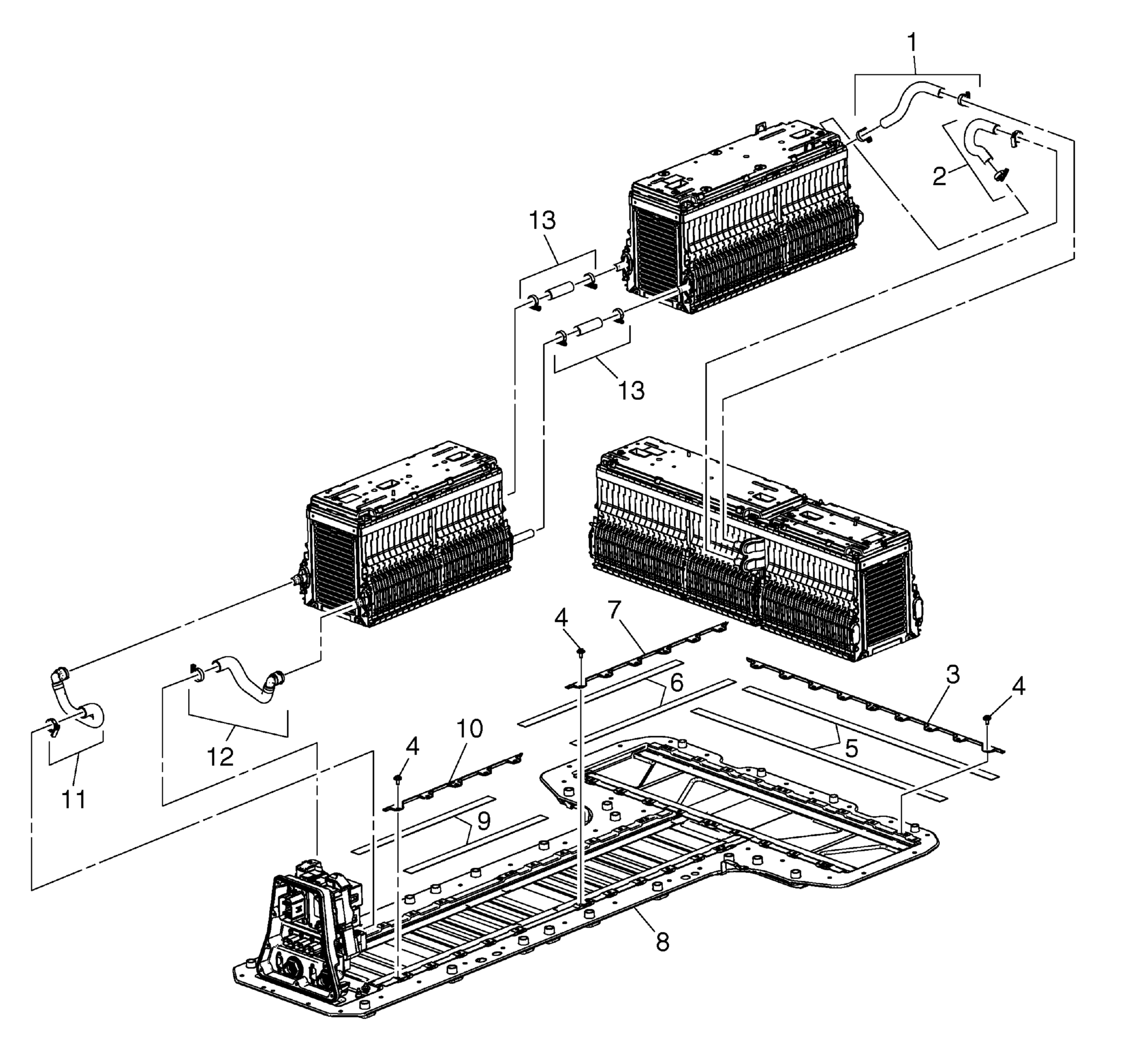

Battery Cell Assembly
| Callout | Component Name |
|---|---|
| 1 | High Voltage Battery Cooling Manifold Outlet Hose |
| 2 | High Voltage Battery Cooling Manifold Inlet Hose |
| 3 | Battery Hold Down Retainer |
| 4 | Battery Tray Bolt |
| 5 | High Voltage Battery Tray Spacer |
| 6 | High Voltage Battery Tray Spacer |
| 7 | Battery Hold Down Retainer |
| 8 | High Voltage Battery Tray |
| 9 | High Voltage Battery Tray Spacer |
| 10 | Battery Hold Down Retainer |
| 11 | High Voltage Battery Cooling Manifold Inlet Hose |
| 12 | High Voltage Battery Cooling Manifold Outlet Hose |
| 13 | High Voltage Battery Cooling Plate Hose |
