Battery Cover Assembly

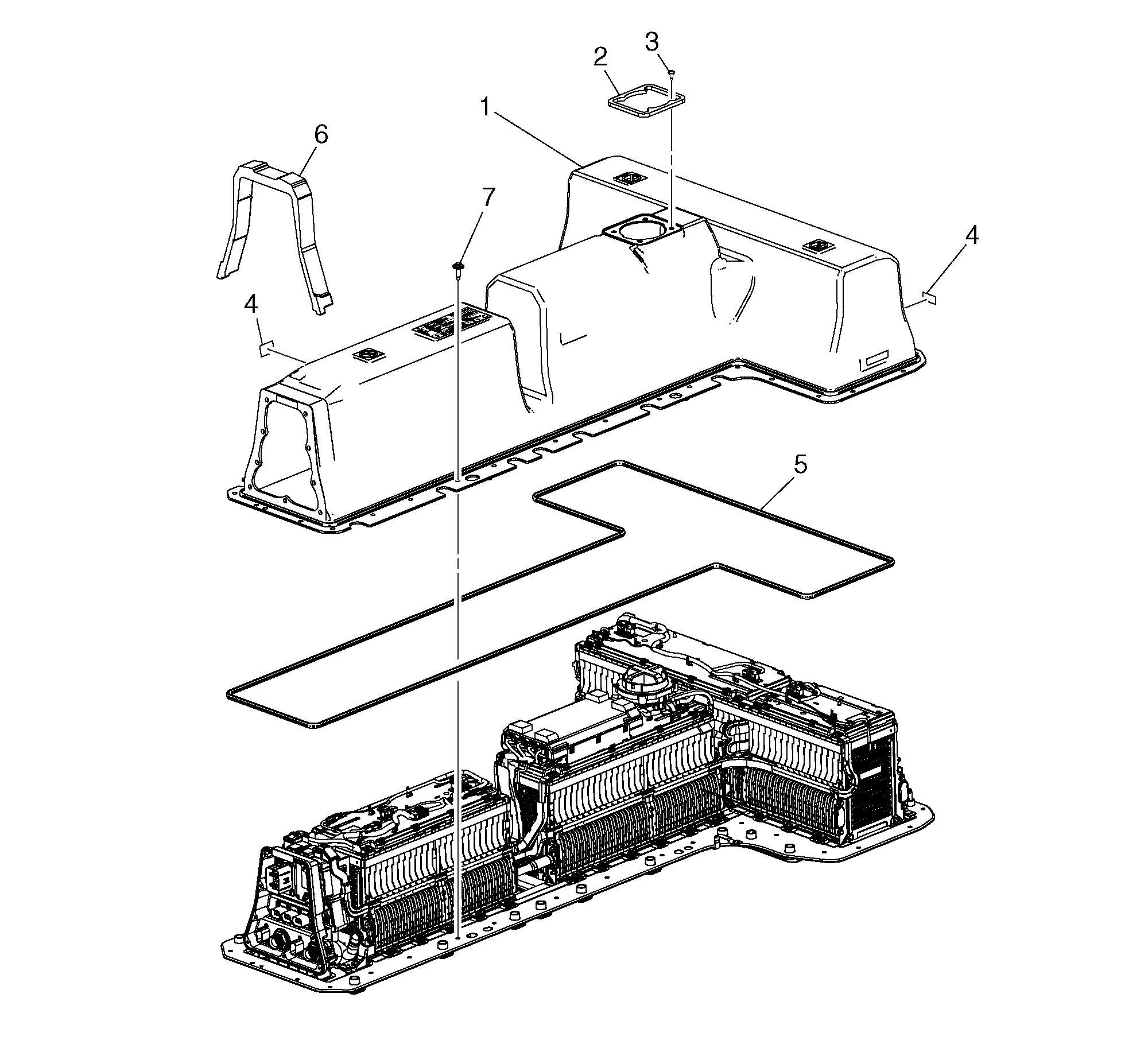

Fig 1: Exploded View Of Battery Cover Assembly Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	High Voltage Battery Cover
2	High Voltage Battery Cover Seal Adhesive
3	Battery Tray Bolt
4	Vent Valve
5	High Voltage Battery Cover Seal
6	Battery Insulator
7	Bolt
