Battery Harness Module Assembly

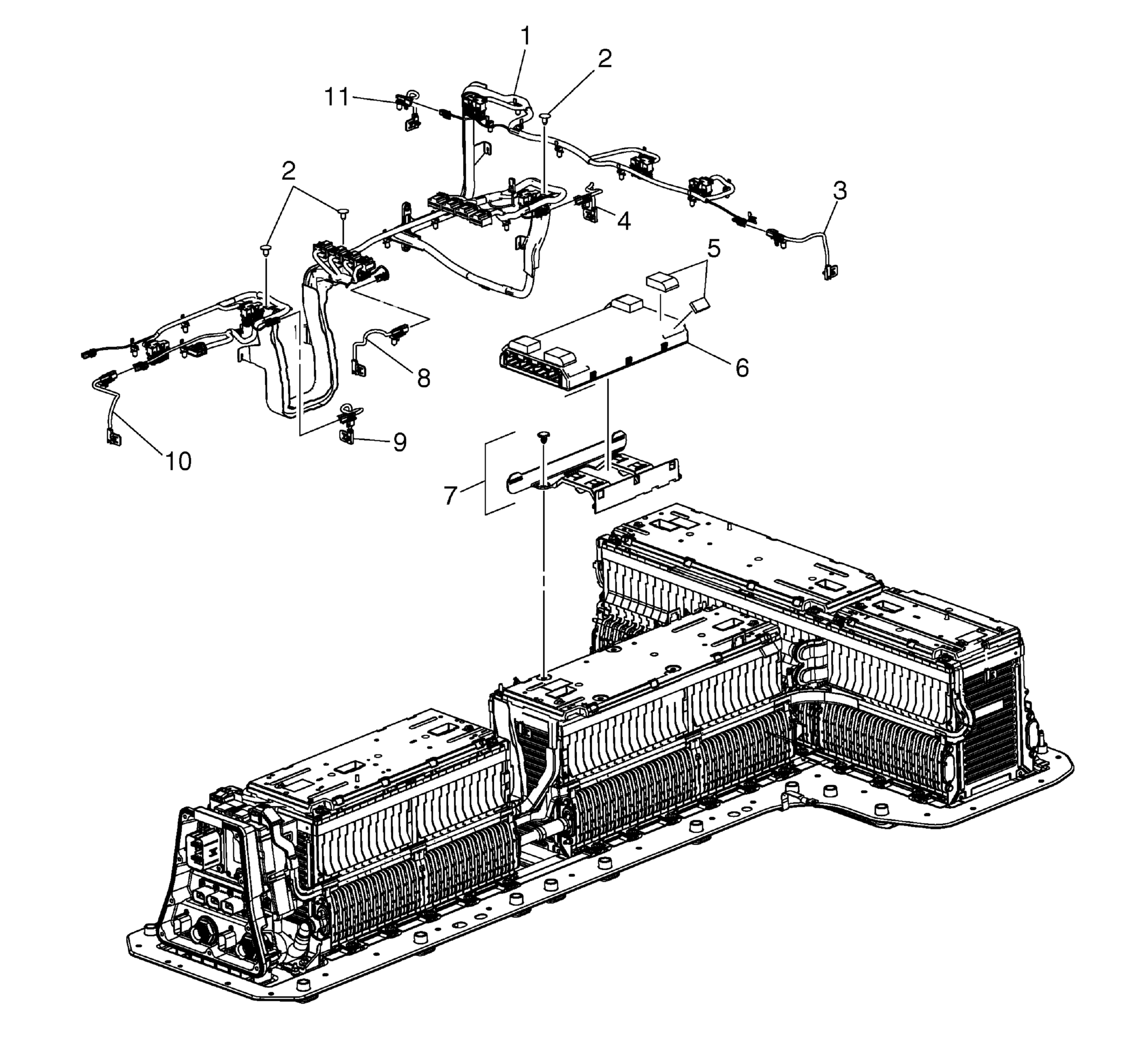

Fig 1: Exploded View Of Battery Harness Module Assembly Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Auxiliary Battery Wiring Harness
2	Retainer
3	Battery Cell Temperature Sensor
4	Battery Cell Temperature Sensor
5	High Voltage Battery Cover Seal Adhesive
6	Battery Energy Control Module
7	Interface Control Module Bracket
8	Battery Cell Temperature Sensor
9	Battery Cell Temperature Sensor
10	Battery Cell Temperature Sensor
11	Battery Cell Temperature Sensor
