Battery Relay Mounting Assembly

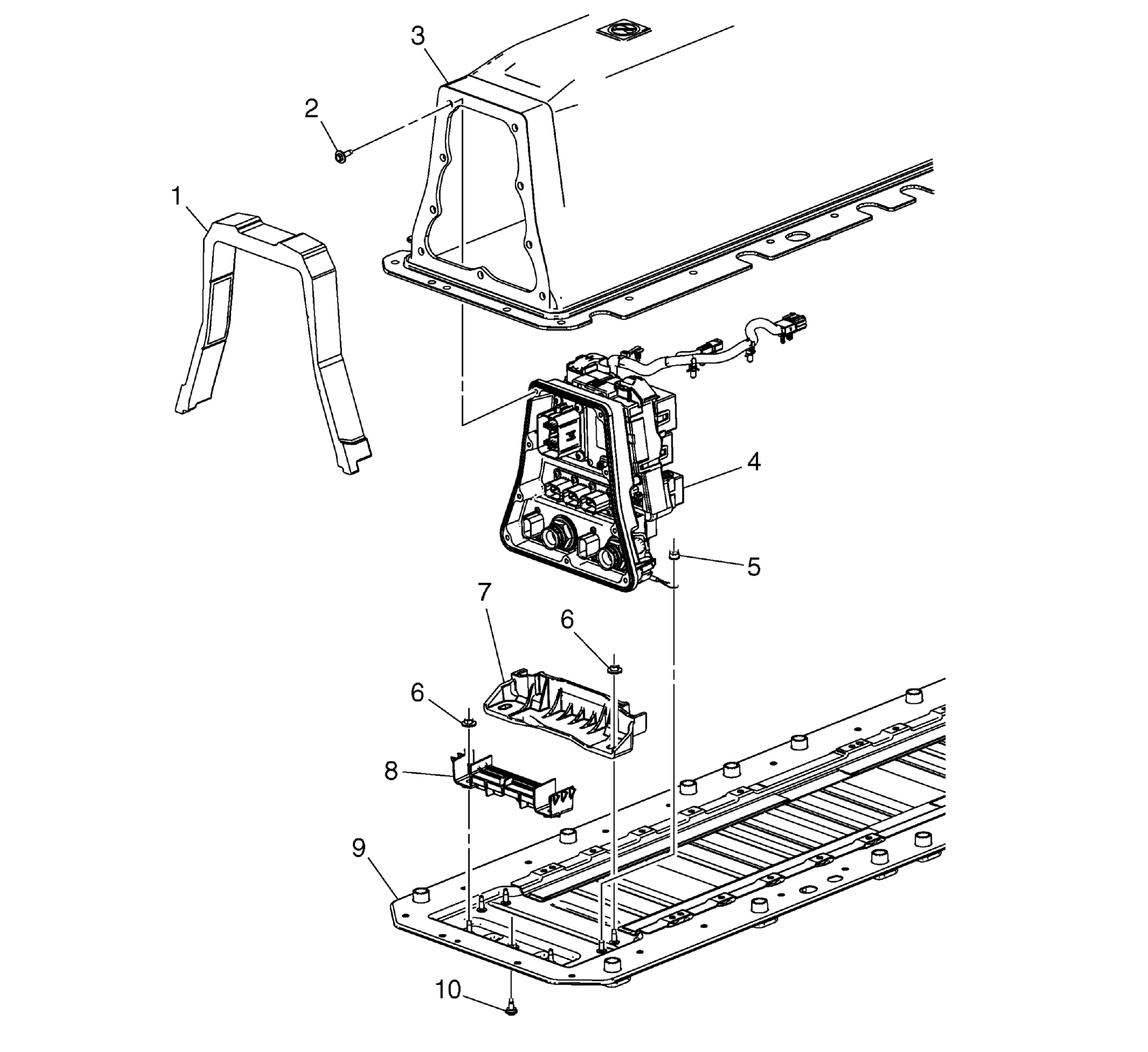

Fig 1: Exploded View Of Battery Relay Mounting Assembly Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Battery Insulator
2	Bolt
3	High Voltage Battery Cover
4	Generator Battery Disconnect Relay
5	Nut
6	Heater and Air Conditioning Evaporator and Blower Module Nut
7	Battery Tray Front Brace
8	Battery Tray Front Brace
9	High Voltage Battery Tray
10	Battery Tray Bolt
