Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

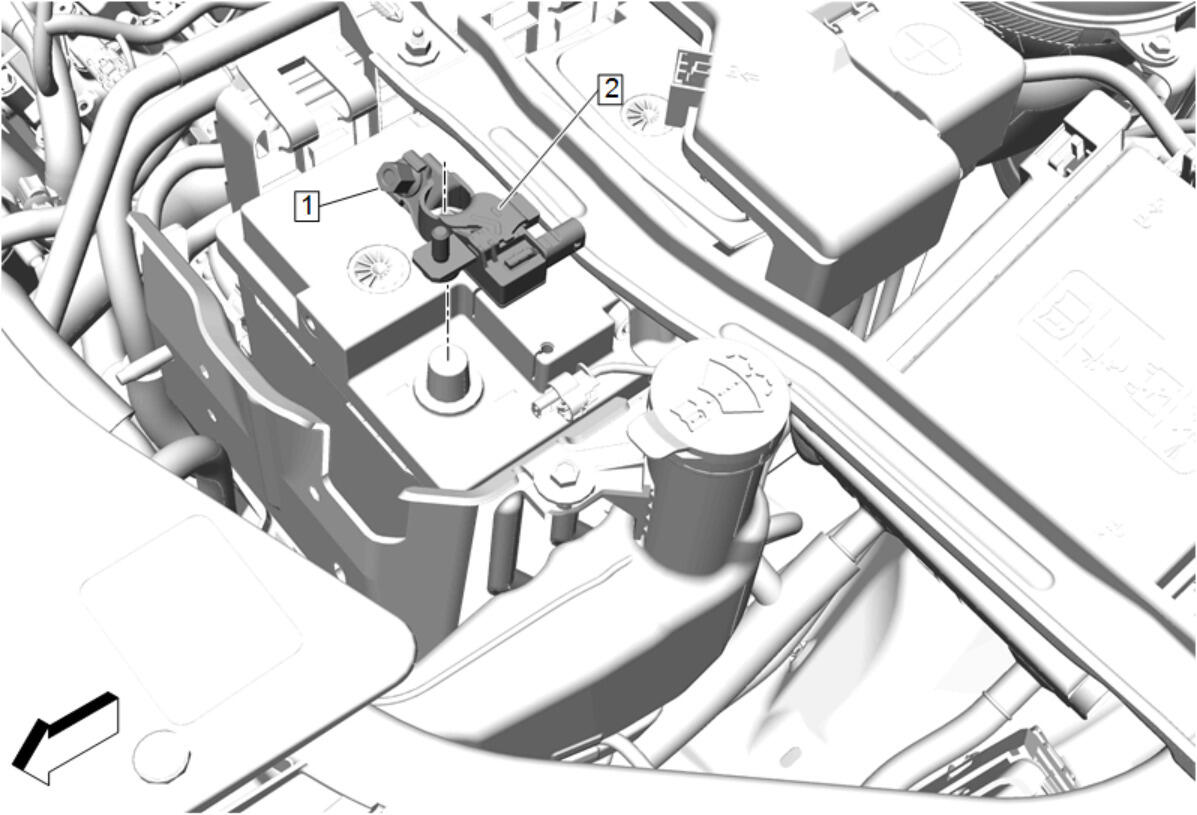

Battery Monitor Module (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Negative Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)
Courtesy of GENERAL MOTORS COMPANY

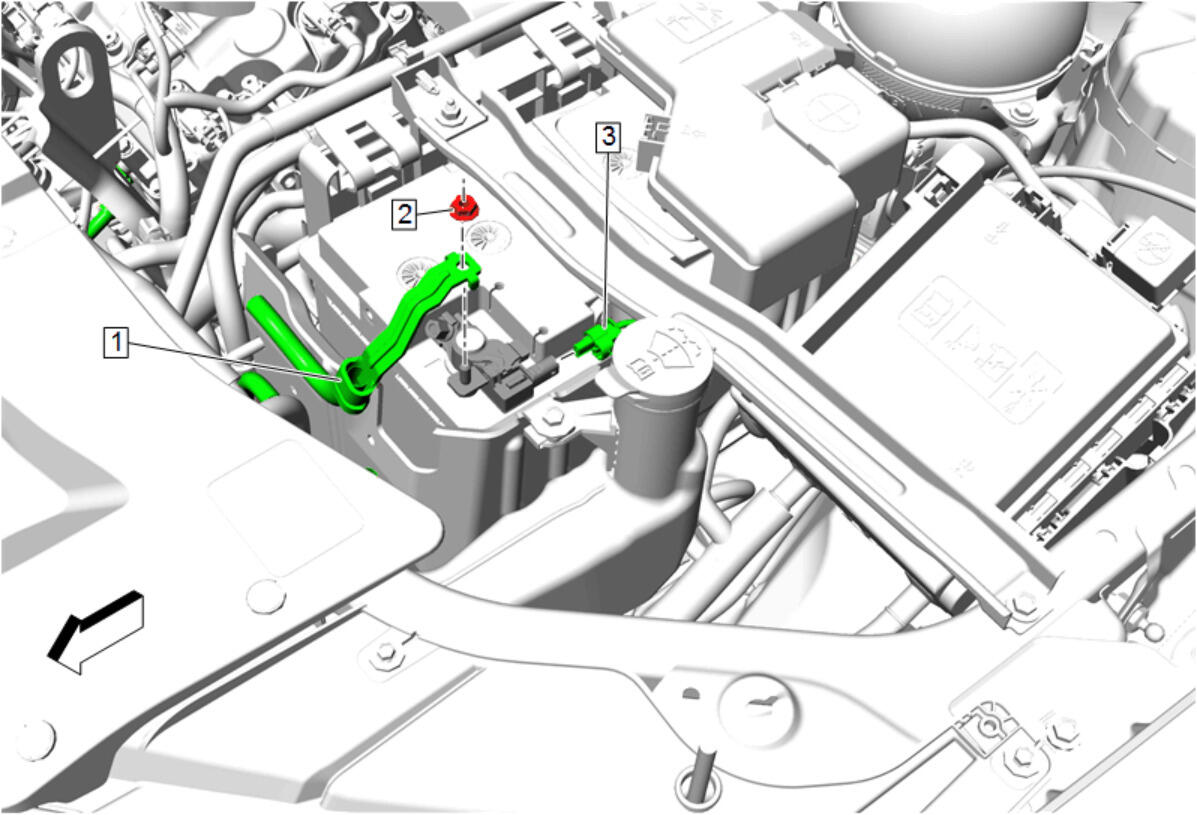

Battery Negative Cable (1) - Install
Battery Negative Cable Nut (2) @ Battery Monitor Module - Install and tighten 12 N.m (106 lb in)
Electrical Connector (3) - Connect
