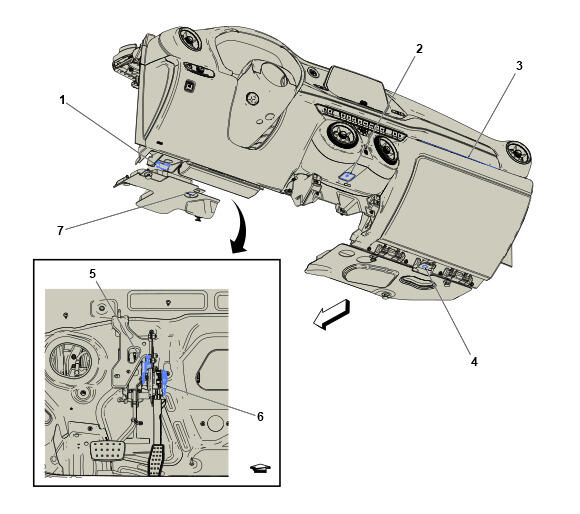

Bottom of Instrument Panel Components
Bottom of Instrument Panel Components
| Component Name | Callout |
|---|---|
| X84 Data Link Connector X84 Data Link Connector | 1 |
| E1W Accent Lamp - Instrument Panel E1W Accent Lamp - Instrument Panel | 2 |
| E1H Accent Lamp - Right Instrument Panel (TSQ) E1H Accent Lamp - Right Instrument Panel (TSQ) | 3 |
| E8VA Floor Courtesy Lamp - Left Front (TSQ) E8VA Floor Courtesy Lamp - Left Front (TSQ) | 4 |
| B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor | 5 |
| B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor | 6 |
| E8VC Floor Courtesy Lamp - Right Front (TSQ) E8VC Floor Courtesy Lamp - Right Front (TSQ) | 7 |
