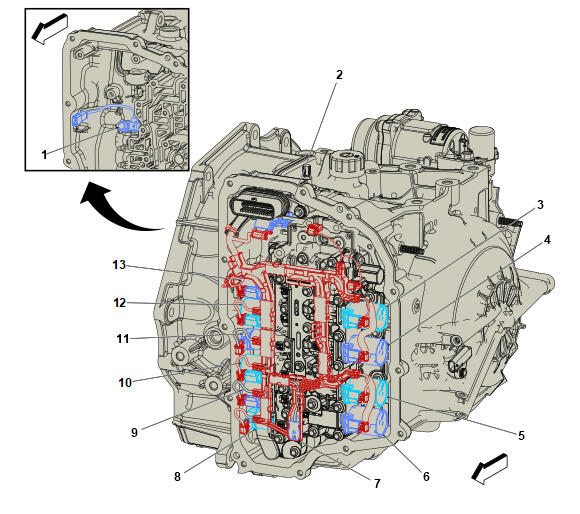

Automatic Transmission Internal Components
Automatic Transmission Internal Components
| Component Name | Callout |
|---|---|
| B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor | 1 |
| B15 Transmission Internal Mode Switch B15 Transmission Internal Mode Switch | 2 |
| Q77B Transmission Control Solenoid Valve 2 Q77B Transmission Control Solenoid Valve 2 | 3 |
| Q77A Transmission Control Solenoid Valve 1 Q77A Transmission Control Solenoid Valve 1 | 4 |
| Q77F Transmission Control Solenoid Valve 6 Q77F Transmission Control Solenoid Valve 6 | 5 |
| Q77E Transmission Control Solenoid Valve 5 Q77E Transmission Control Solenoid Valve 5 | 6 |
| B13 Transmission Fluid Temperature Sensor | 7 |
| Q77K Transmission Control Solenoid Valve 10 Q77K Transmission Control Solenoid Valve 10 | 8 |
| Q77G Transmission Control Solenoid Valve 7 Q77G Transmission Control Solenoid Valve 7 | 9 |
| Q77H Transmission Control Solenoid Valve 8 Q77H Transmission Control Solenoid Valve 8 | 10 |
| Q77J Transmission Control Solenoid Valve 9 Q77J Transmission Control Solenoid Valve 9 | 11 |
| Q77D Transmission Control Solenoid Valve 4 Q77D Transmission Control Solenoid Valve 4 | 12 |
| Q77C Transmission Control Solenoid Valve 3 Q77C Transmission Control Solenoid Valve 3 | 13 |
