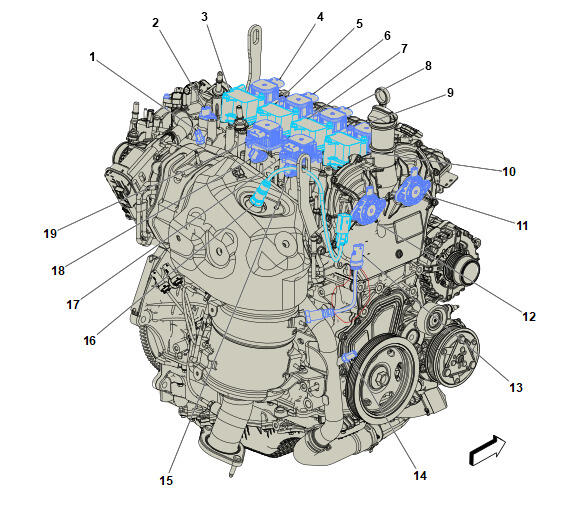

Right Rear of Engine Components (LSY)
Right Rear of Engine Components (LSY)
| Component Name | Callout |
|---|---|
| B34E Engine Coolant Temperature Sensor 5 (LSY) B34E Engine Coolant Temperature Sensor 5 (LSY) | 1 |
| B23E Camshaft Position Sensor - Exhaust (LCV/LSY) B23E Camshaft Position Sensor - Exhaust (LSY) | 2 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (LSY) | 3 |
| M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 (LSY) | 4 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LSY) | 5 |
| M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) | 6 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (LSY) | 7 |
| M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 (LSY) | 8 |
| M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 (LSY) | 9 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LSY) | 10 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV/LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) | 11 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV/LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) | 12 |
| B52B Heated Oxygen Sensor 2 (LCV/LSY) B52B Heated Oxygen Sensor 2 (LSY) | 13 |
| B34A Engine Coolant Temperature Sensor 1 (LSY) B34A Engine Coolant Temperature Sensor 1 (LSY) | 14 |
| B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) | 15 |
| B52A Heated Oxygen Sensor 1 (LCV/LSY) B52A Heated Oxygen Sensor 1 (LSY) | 16 |
| M130B Exhaust Camshaft Profile Actuator 2 (LSY) M130B Exhaust Camshaft Profile Actuator 2 (LSY) | 17 |
| B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) | 18 |
| M130C Exhaust Camshaft Profile Actuator 3 (LSY) M130C Exhaust Camshaft Profile Actuator 3 (LSY) | 19 |
