Front Seat Belt Guide Adjuster Replacement

Courtesy of GENERAL MOTORS COMPANY

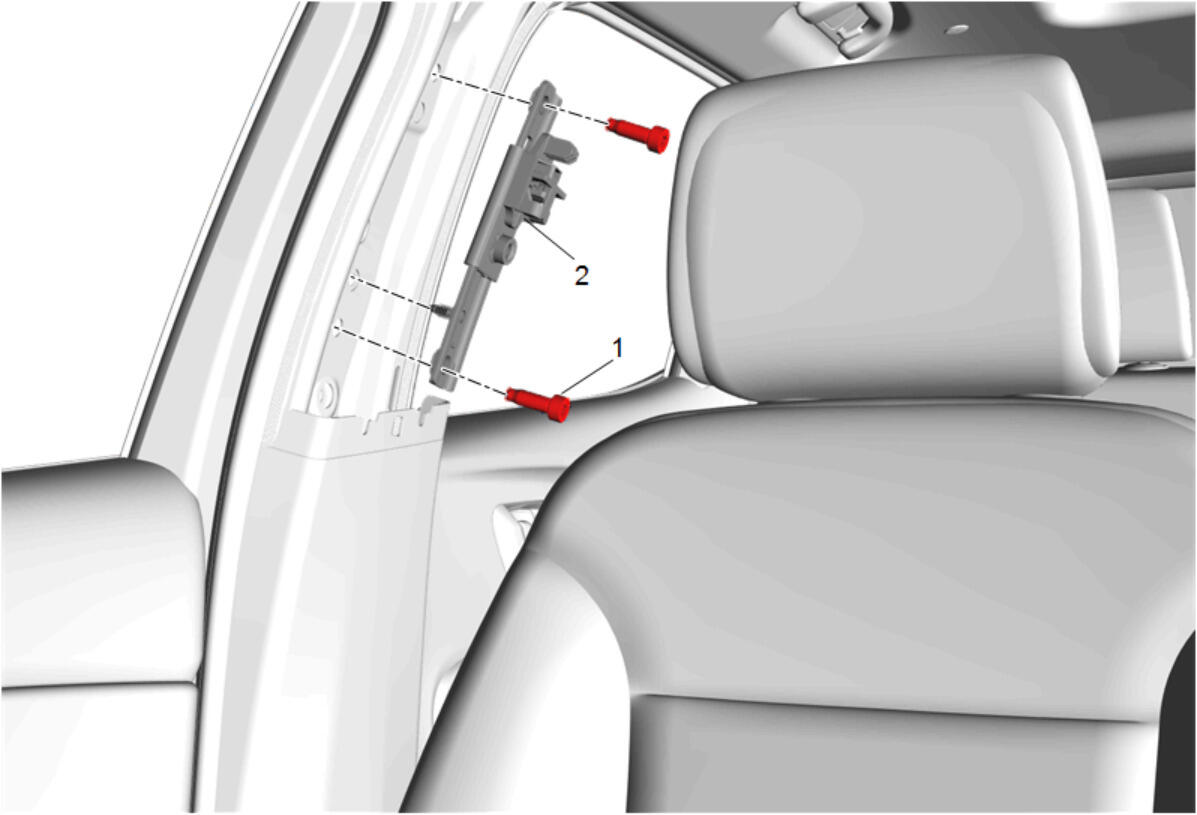

Callout	Component Name
Preliminary Procedures Center Pillar Upper Trim Panel Replacement Remove the front seat belt retractor D ring bolt. Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster

Callout

Component Name

Preliminary Procedures

Front Seat Belt Guide Adjuster Bolt [2x]

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat Belt Guide Adjuster
