Power Transfer Unit Mounting (with Transmission)

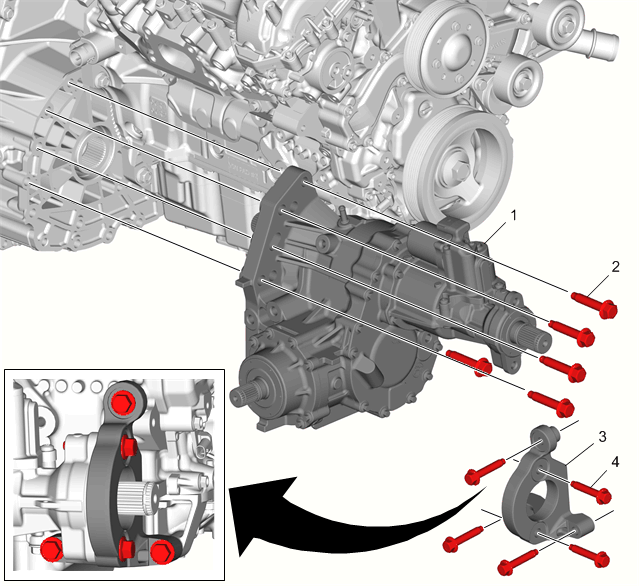

Fig 1: Identifying Power Transfer Unit Mounting (With Transmission M7U)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Case
2	Power Transfer Unit Bolt [5x]
3	Transaxle Brace-to-Engine Bolt
4	Transfer Case-to-Transmission Bolt [5x]
