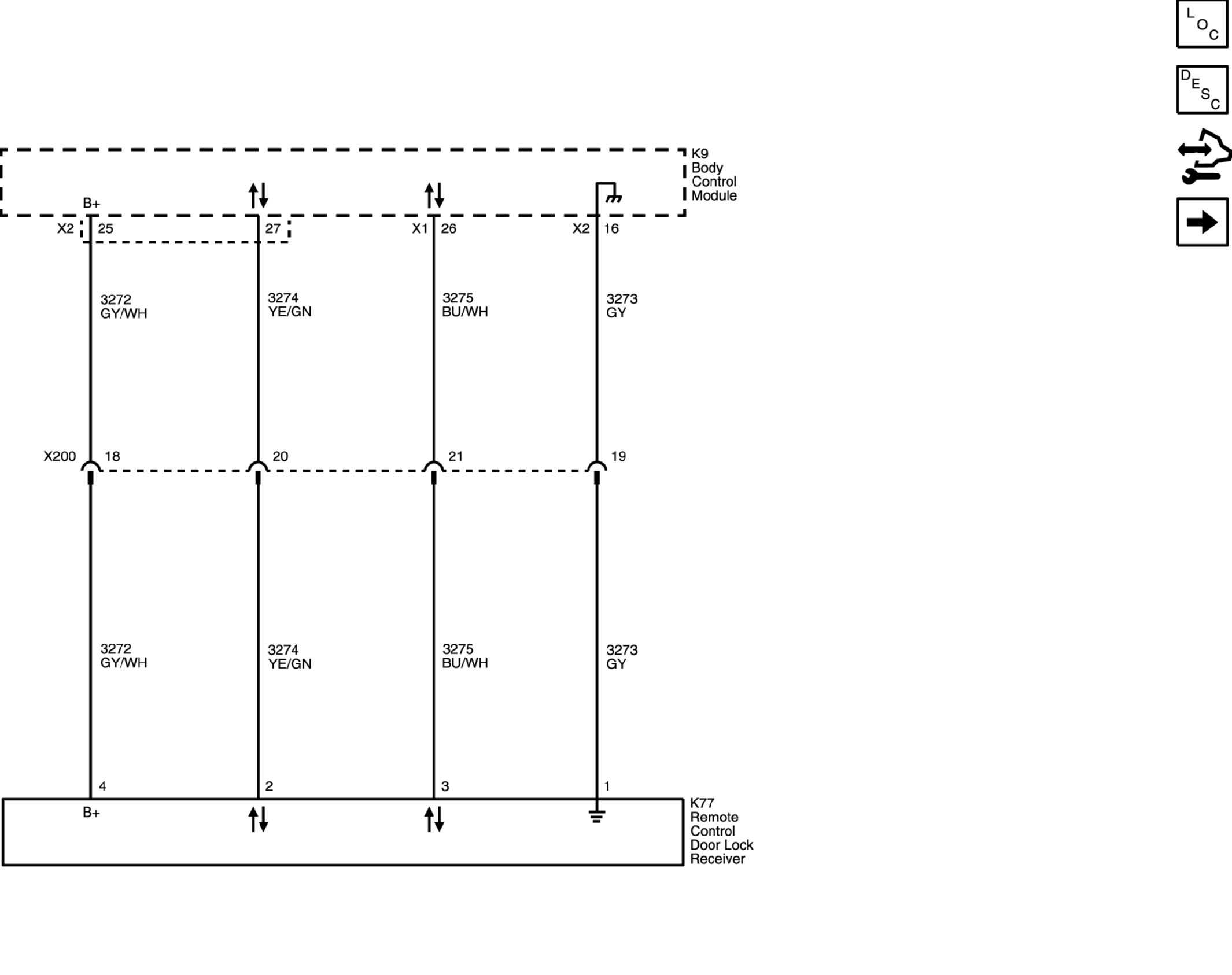

Home › Chevrolet › 2019 › Bolt EV Premier › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Wiring Schematic And Routing Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
