Brake Pressure Modulator Valve Bracket Replacement

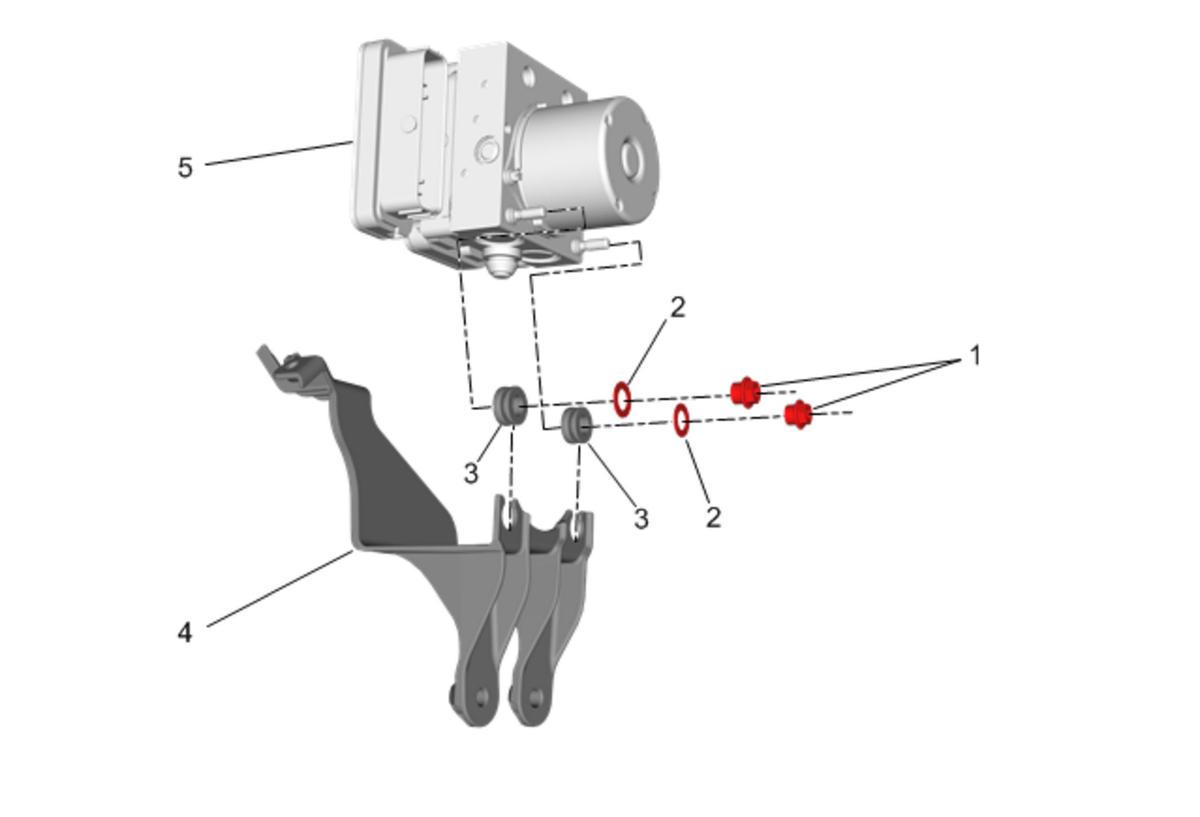

Fig 1: Exploded View Of Brake Pressure Modulator Valve, Bracket Replacement Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
1	Brake Pressure Modulator Valve Insulator Nut [2x] CAUTION: Fastener Caution Procedure Remove and DISCARD the nuts. Install the NEW nuts. Tighten 8 N.m (71 lb in)
2	Brake Pressure Modulator Valve Insulator Washer [2x] Procedure Remove and DISCARD the washers. Install the NEW washers.
3	Brake Pressure Modulator Valve Insulator [2x] Procedure Remove and DISCARD the Insulators. Install the NEW Insulators.
4	Brake Pressure Modulator Valve Bracket
5	Electronic Brake Control Module with Brake Pressure Modulator Valve
