Steering Column Components

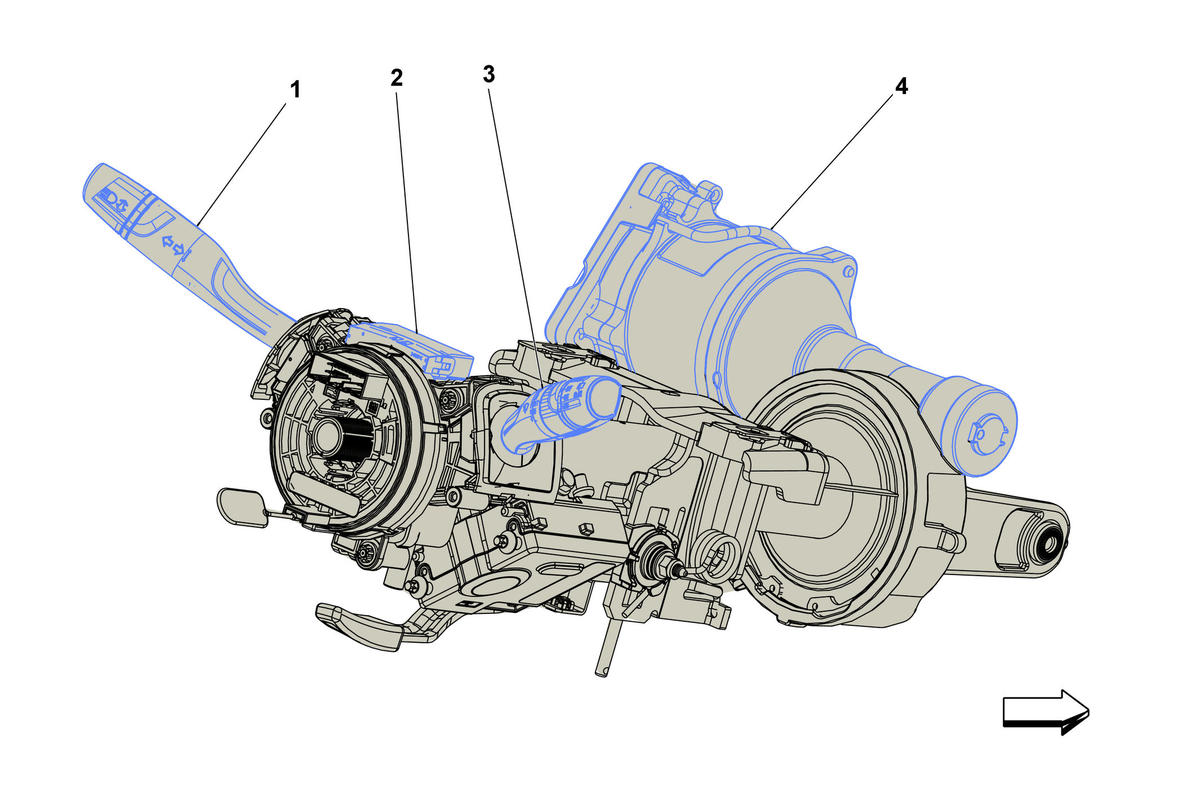

GM5152626Courtesy of GENERAL MOTORS COMPANY
Items
1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 or X85 Steering Wheel Air Bag Coil X2
3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
4. K43 Power Steering Control Module K43 Power Steering Control Module X1 or K43 Power Steering Control Module X2
