Communication Center Call Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

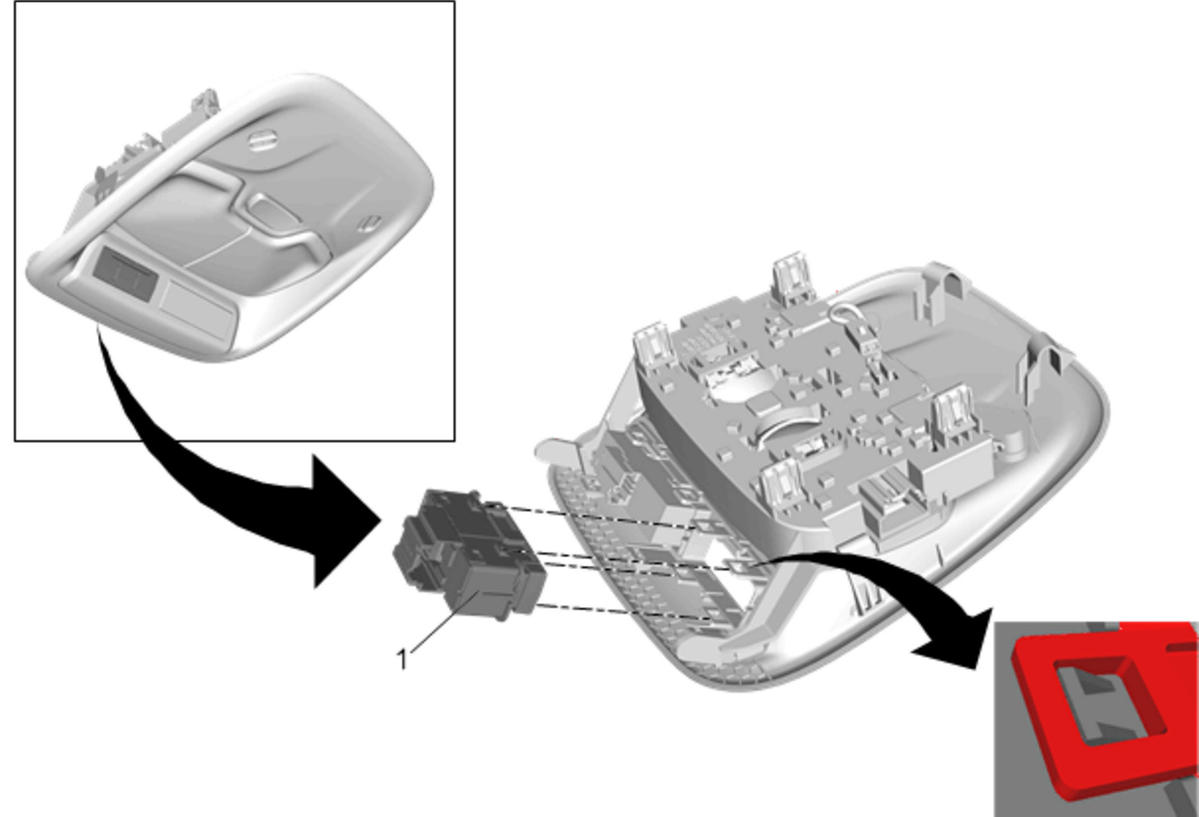

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Roof Console Replacement
1	Communication Center Call Switch Procedure Use a flat bladed plastic tool to remove. Release tabs and remove the switch from the roof console. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Roof Console Replacement

Communication Center Call Switch

Procedure

Use a flat bladed plastic tool to remove.
Release tabs and remove the switch from the roof console.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
