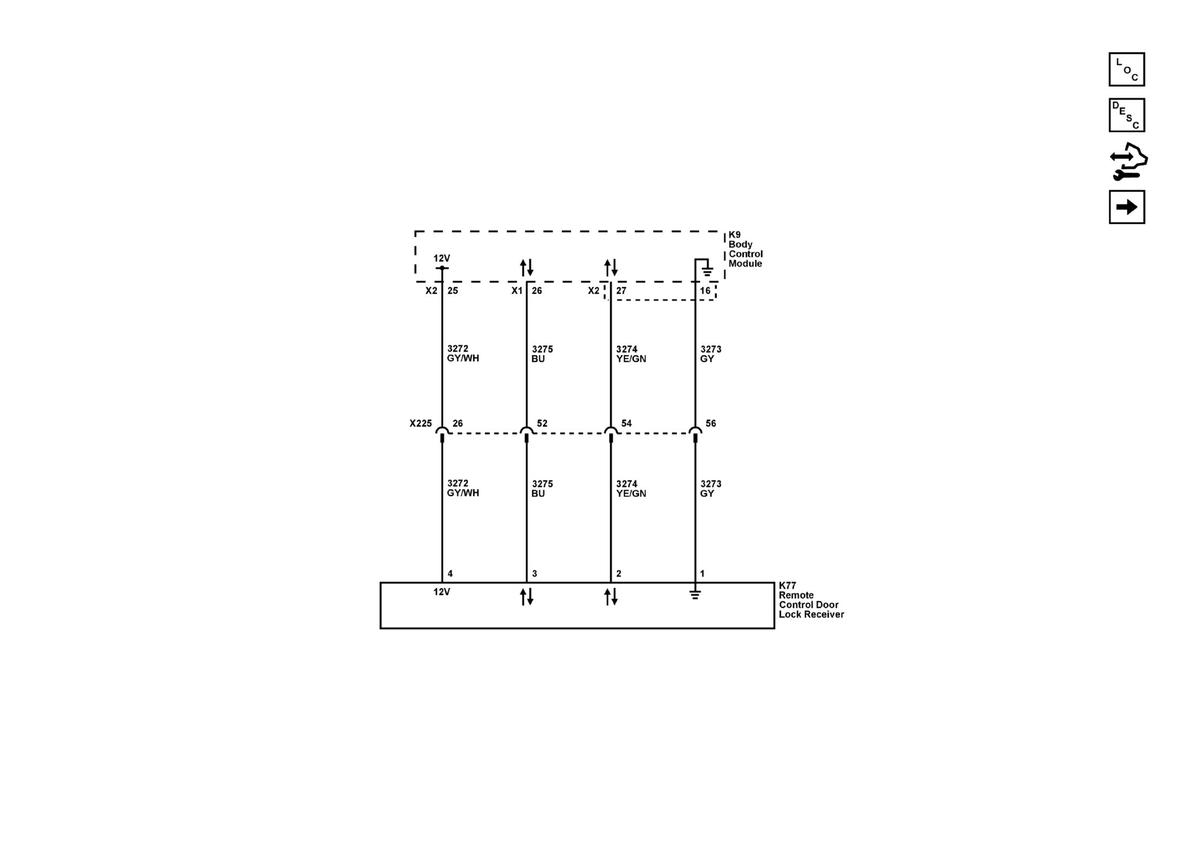

Home › Chevrolet › 2019 › Camaro SS, 2D Convertible, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
