Human Machine Interface Control Module Bypass Module Bracket Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

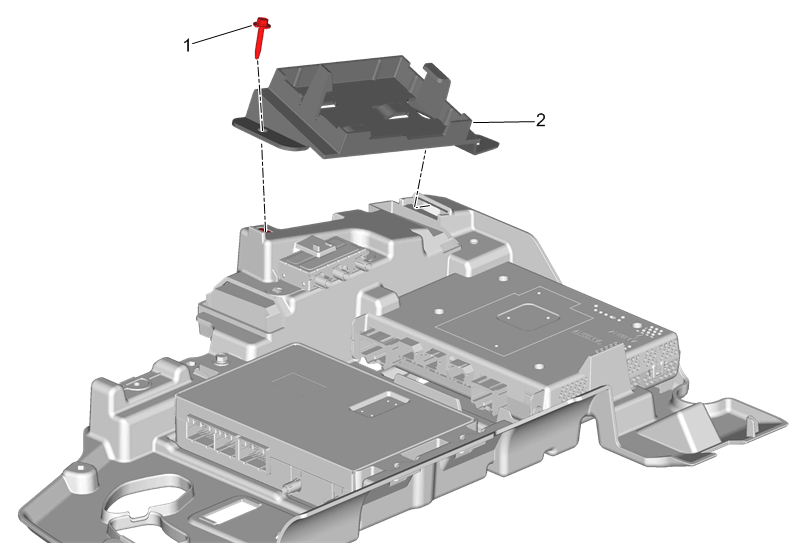

| Callout | Component Name |
|---|---|
| Preliminary Procedure Human Machine Interface Control Module Bypass Module Replacement |
|
| 1 | Human Machine Interface Control Module Bypass Module Bracket Bolt
CAUTION:
Tighten 2.5N.m (22 lb in) |
| 2 | Human Machine Interface Control Module Bypass Module Bracket |
