Vehicle Performance Data Recorder Bracket Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

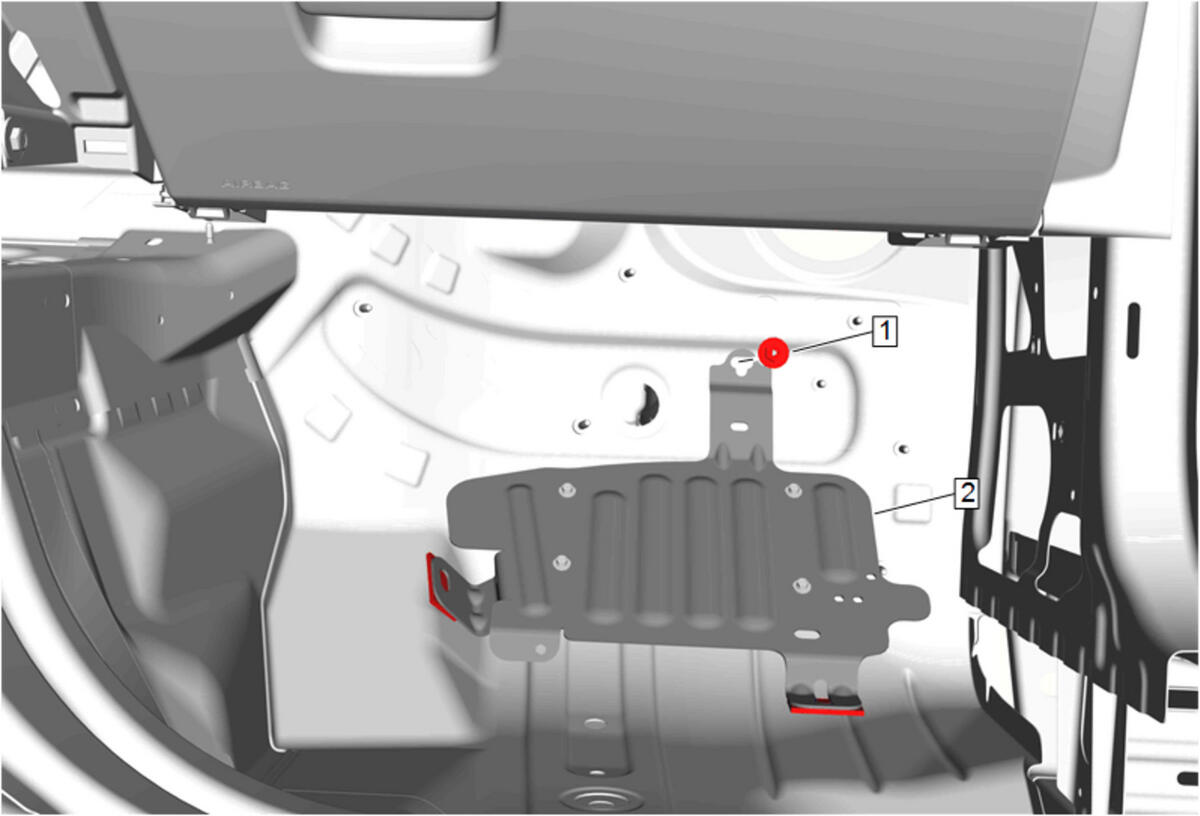

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the front floor panel carpet as necessary. Front Floor Panel Carpet Replacement - Right Side |
|
| 1 | Video Display Bracket Nut
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Vehicle Performance Data Recorder Bracket Procedure
|
