Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

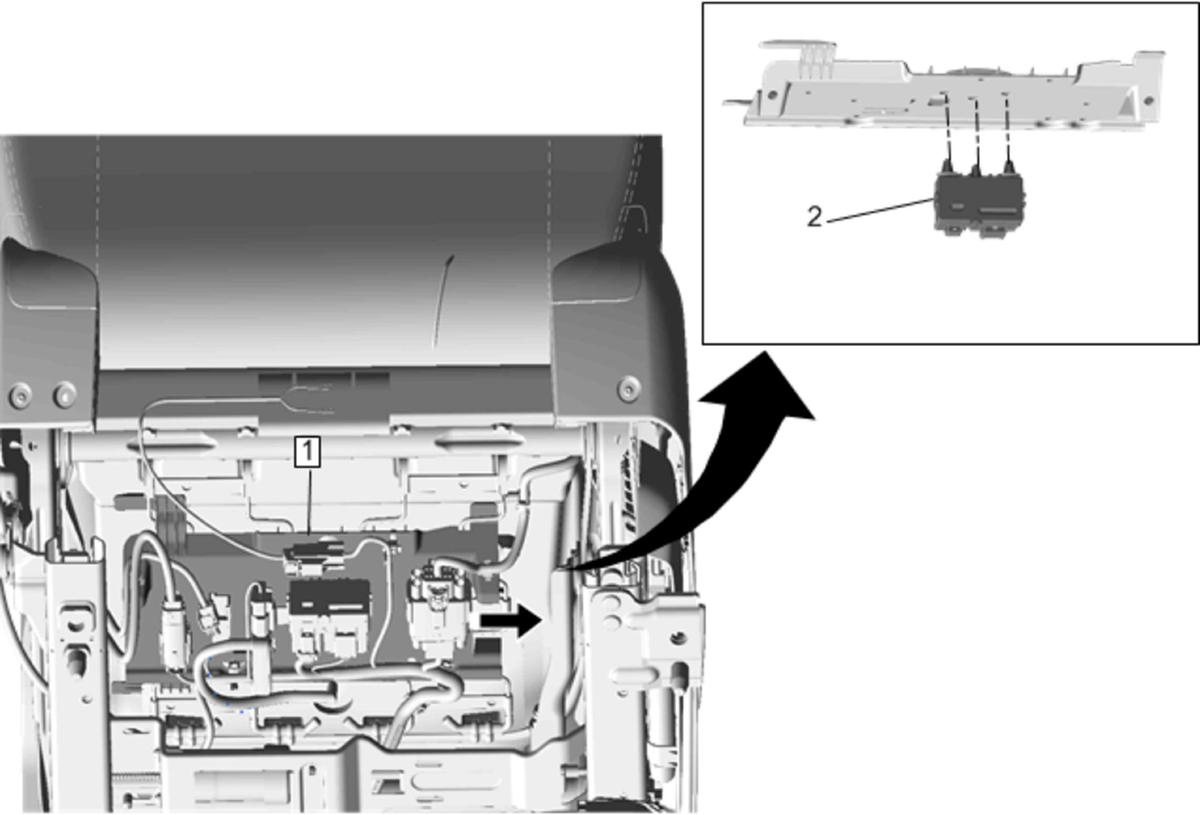

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation
1	Wiring Harness Bracket
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector. Refer to Control Module References for programing and setup information.

Callout

Component Name

Wiring Harness Bracket

Front Seat Heater Control Module

Procedure
