Steering Column Upper Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel cluster trim plate. Instrument Panel Cluster Trim Plate Replacement Remove the steering wheel. Steering Wheel Replacement

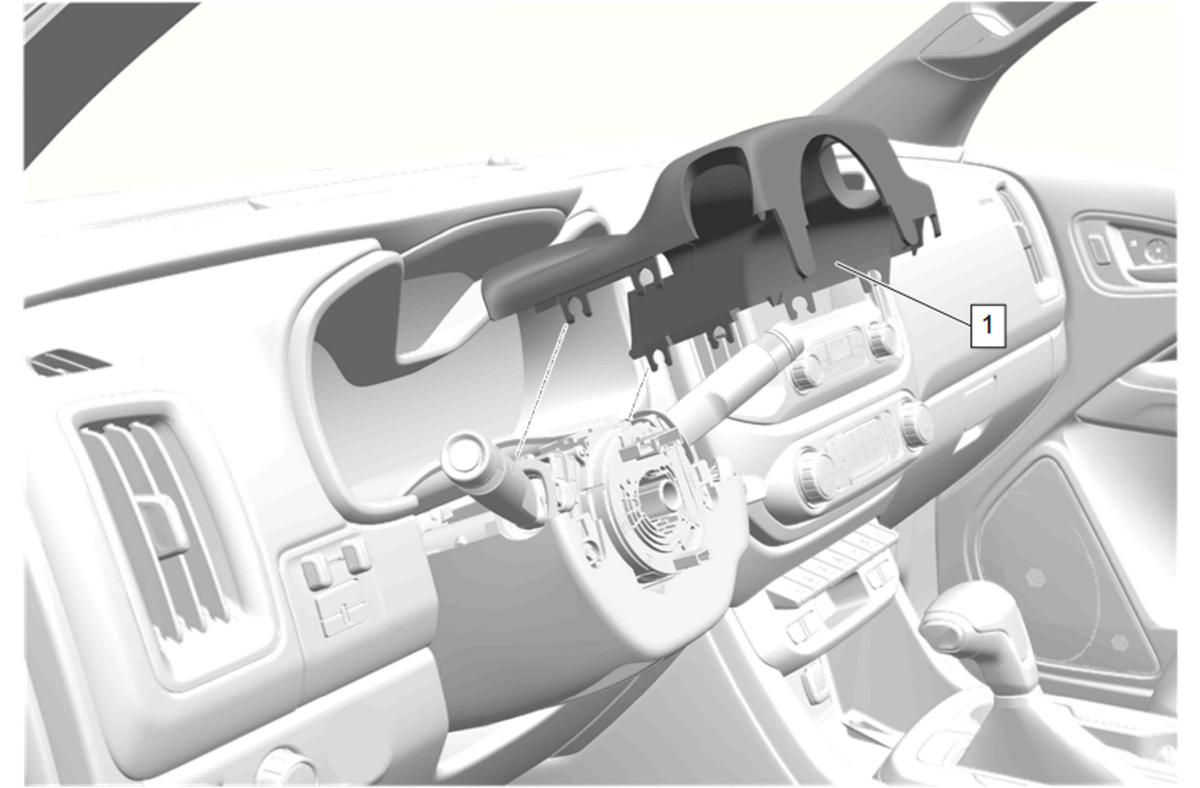

1	Steering Column Upper Trim Cover Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel cluster trim plate. Instrument Panel Cluster Trim Plate Replacement
Remove the steering wheel. Steering Wheel Replacement

Steering Column Upper Trim Cover
Procedure
Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
