Remote Function Wiring Schematics
›

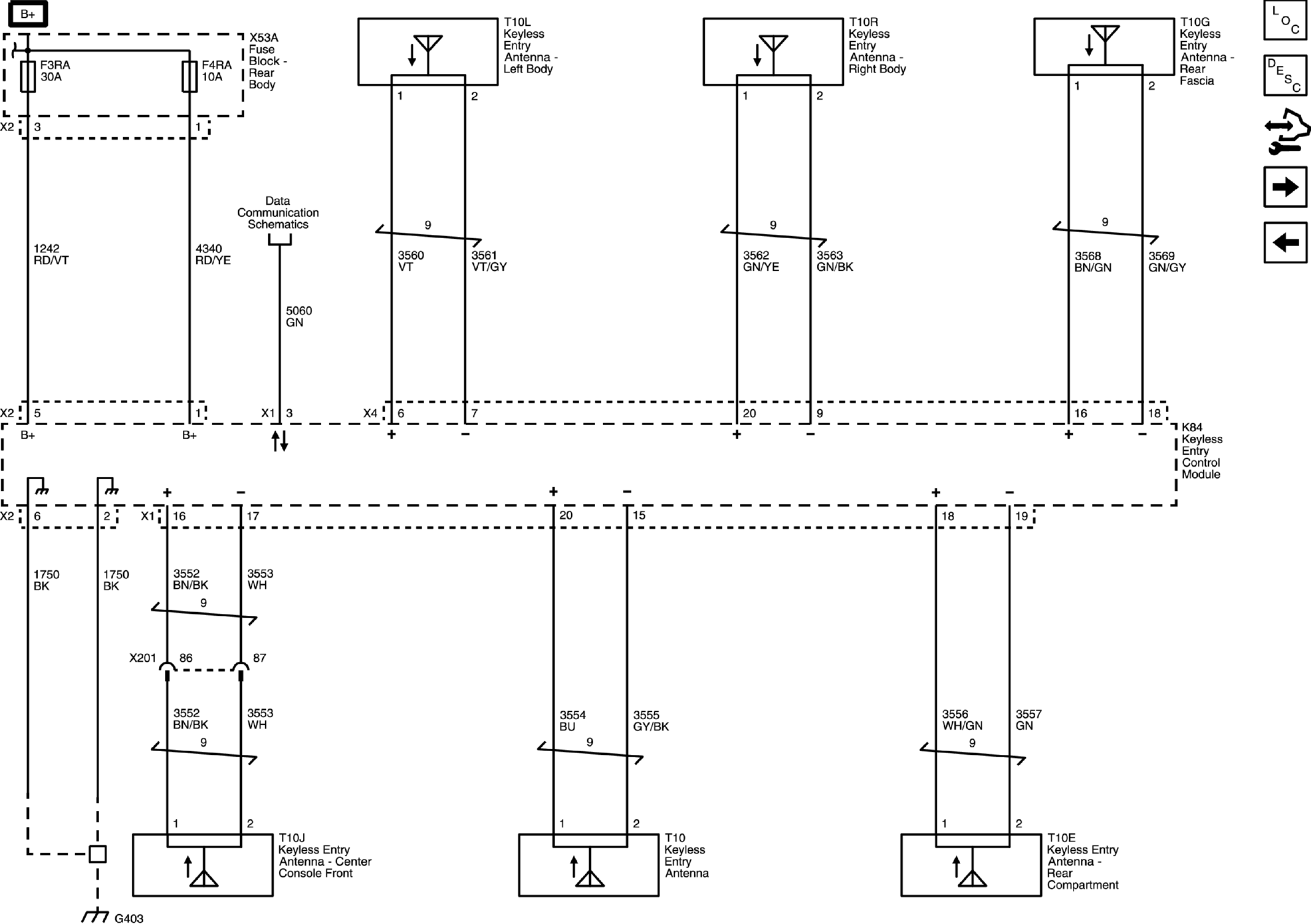

Keyless Entry - Keyless Entry Control Module
Keyless Entry - Keyless Entry Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
