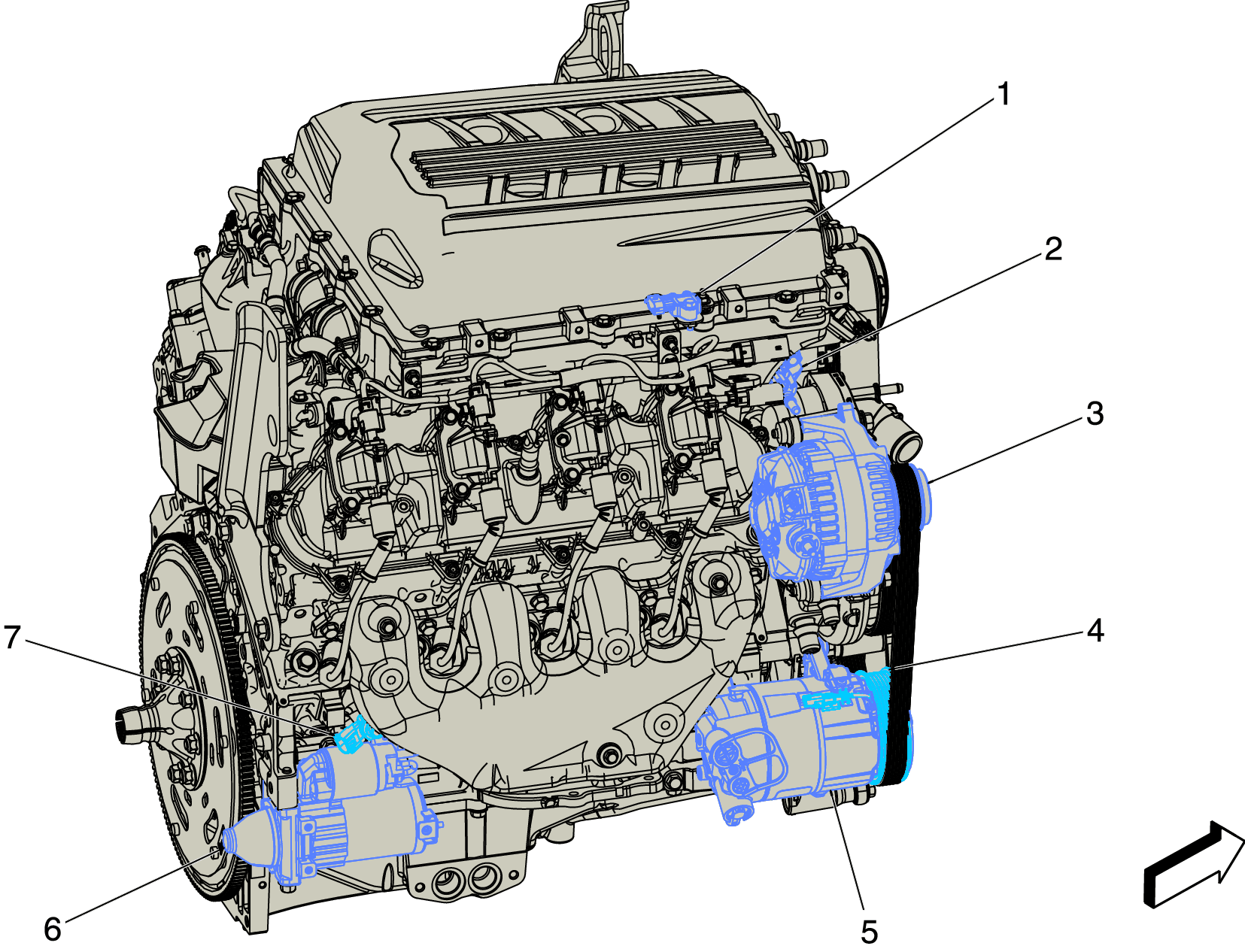

Right Side of Engine Compartment Components (LT5)
Right Side of Engine Compartment Components (LT5)
| Items |
|---|
| 1. B105 Supercharger Inlet Pressure Sensor B105 Supercharger Inlet Pressure Sensor |
| 2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3. G13 Generator G13 Generator X1G13 Generator X2 |
| 4. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 5. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 6. M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2 |
| 7. B68B Knock Sensor 2 B68B Knock Sensor 2 |
