Digital Radio Transceiver Module Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

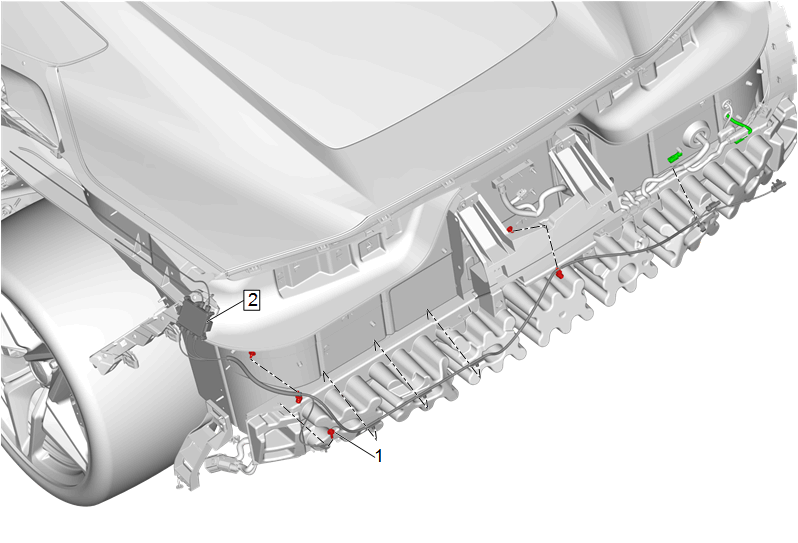

Callout	Component Name
Preliminary Procedure Quarter Outer Panel Replacement - Left Side (Coupe)Quarter Outer Panel Replacement - Left Side (Convertible)
1	Radio Antenna Amplifier Bolt CAUTION: Fastener Caution Tighten 14 N.m (124 lb in)
2	Digital Radio Transceiver Module Antenna Procedure Disconnect the electrical connectors. Release the retainers.

Callout

Component Name

Radio Antenna Amplifier Bolt

CAUTION:

Tighten
14 N.m (124 lb in)

Digital Radio Transceiver Module Antenna

Procedure
