Radio Antenna Module Replacement

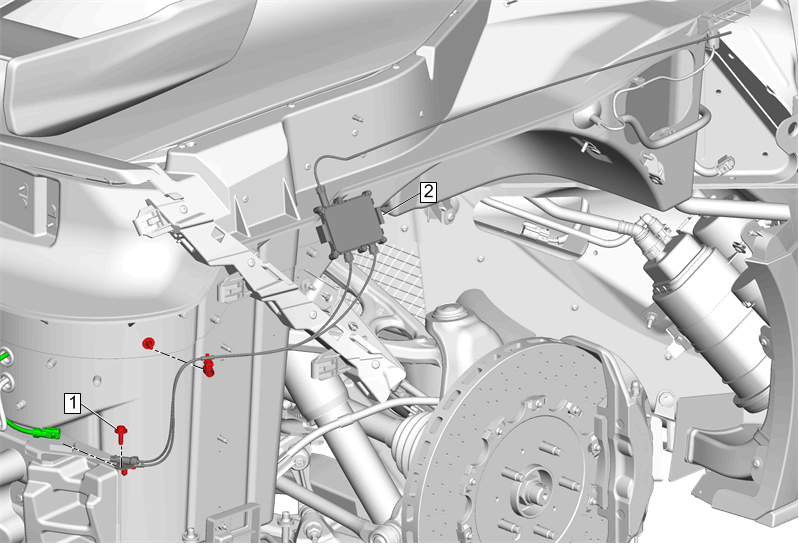

GM4898457

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Quarter Outer Panel Replacement - Right Side (Coupe)Quarter Outer Panel Replacement - Right Side (Convertible)

1

Radio Antenna Amplifier Bolt

CAUTION:

Fastener Caution

Tighten
14 N.m (124 lb in)

2

Radio Antenna Module

Procedure

Disconnect the electrical connector.
Release the retainers.
