Front Side Door Lock Cylinder Replacement

Courtesy of GENERAL MOTORS COMPANY

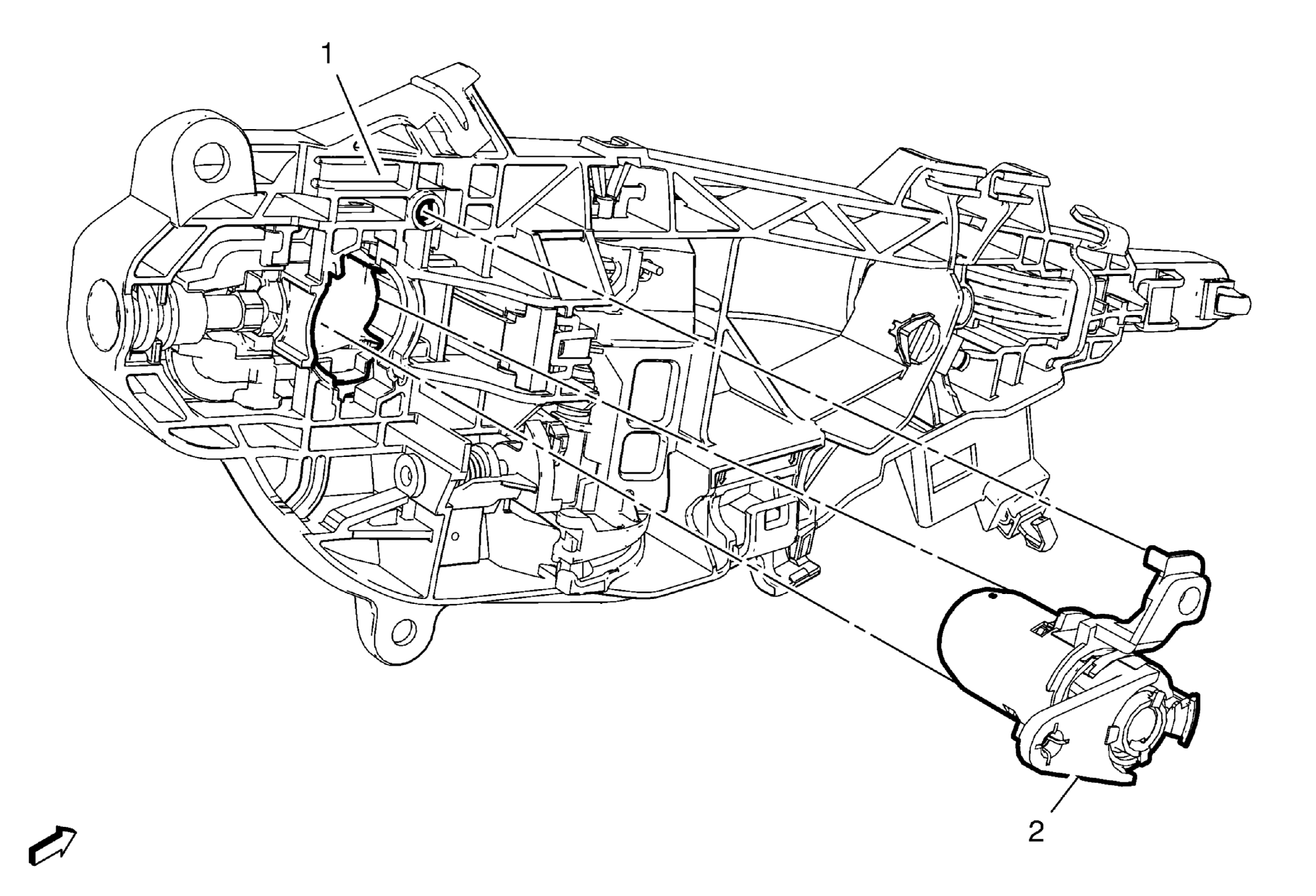

Callout	Component Name
Preliminary Procedure  Front Side Door Outside Handle Bracket Replacement  - Remove
1	Front Side Door Outside Handle Bracket Retainer Procedure  Press the retainer to unlock.
2	Front Side Door Lock Cylinder Procedure  Front Side Door Lock Cylinder Rod @ Front Side Door Lock Cylinder - Release
