Front Side Door Outside Handle Cable Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Outside Handle Bracket Replacement

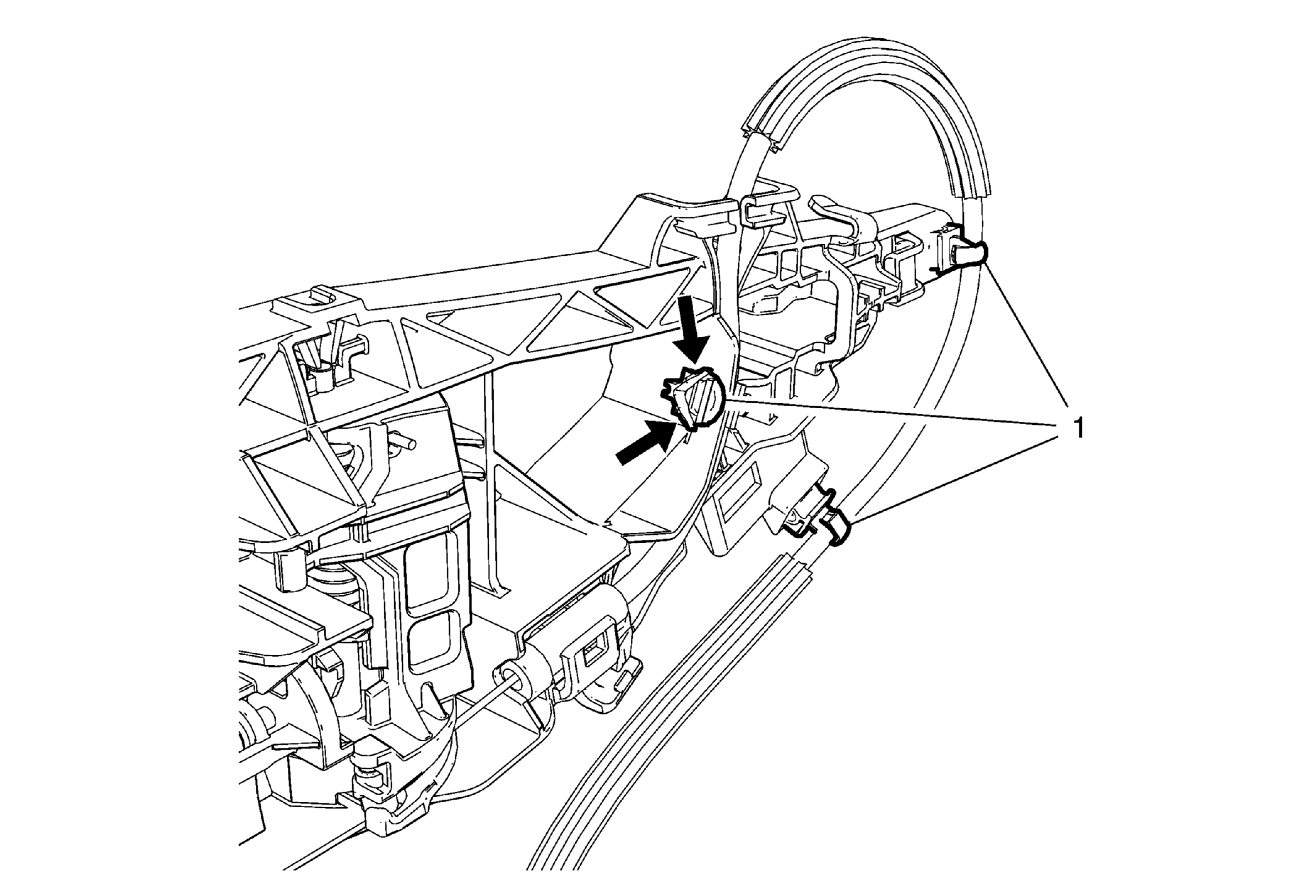

1	Front Side Door Outside Handle Cable Retainer [3x] Procedure Push the retainer in direction of arrows to unlock. Front Side Door Outside Handle Cable @ Retainer - Remove [3x]

Callout

Component Name

Front Side Door Outside Handle Cable Retainer [3x]

Procedure
