Liftgate Outside Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

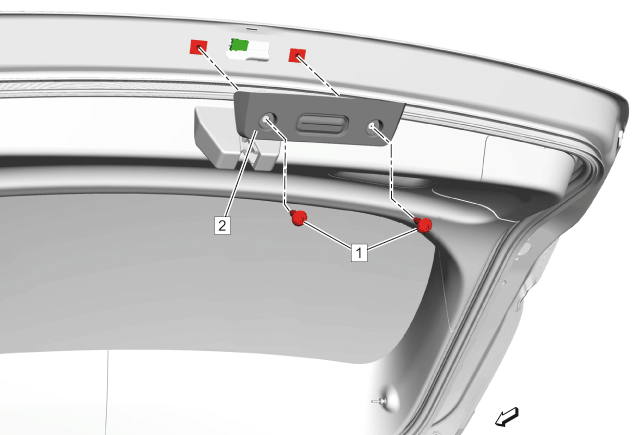

Callout	Component Name
1	Liftgate Outside Handle Bolt [2x] CAUTION: Fastener Caution Tighten 2 N.m (18 lb in)
2	Liftgate Outside Handle Procedure Disconnect the electrical connector. Liftgate Release Switch - Remove - Liftgate Release Switch Replacement

Callout

Component Name

Liftgate Outside Handle Bolt [2x]

CAUTION:

Tighten
2 N.m (18 lb in)

Liftgate Outside Handle

Procedure
