Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

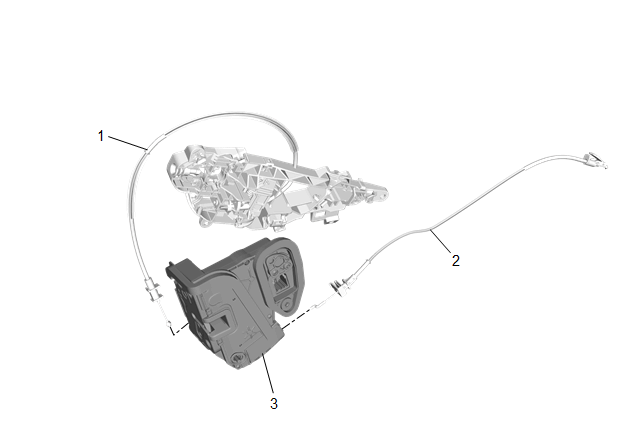

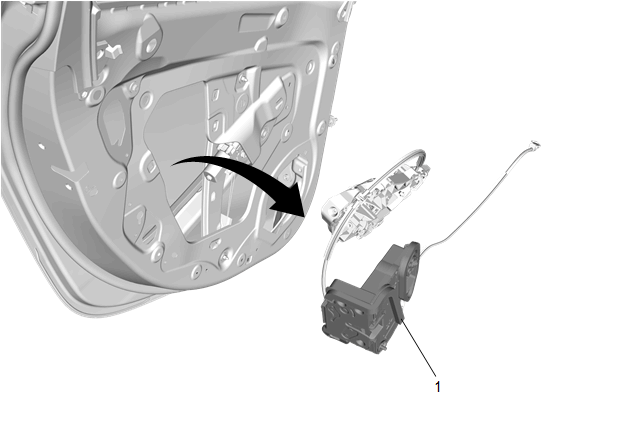

Rear Side Door Outside Handle Cable (1) @ Rear Side Door Latch (3) - Install - Rear Side Door Outside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

Install the rear side door latch and rear side door outside handle bracket (1) to rear side door.

Courtesy of GENERAL MOTORS COMPANY

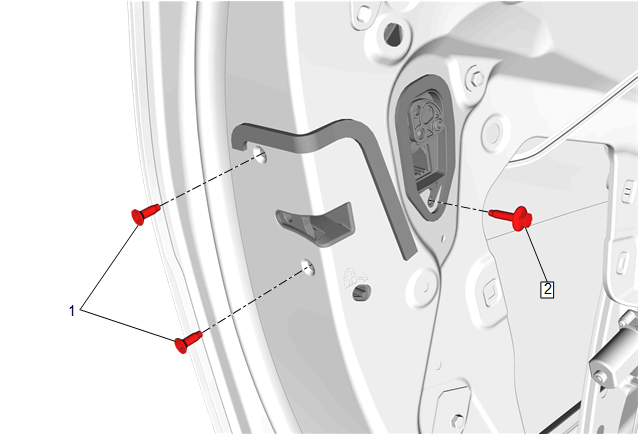

Rear Side Door Latch Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

Courtesy of GENERAL MOTORS COMPANY

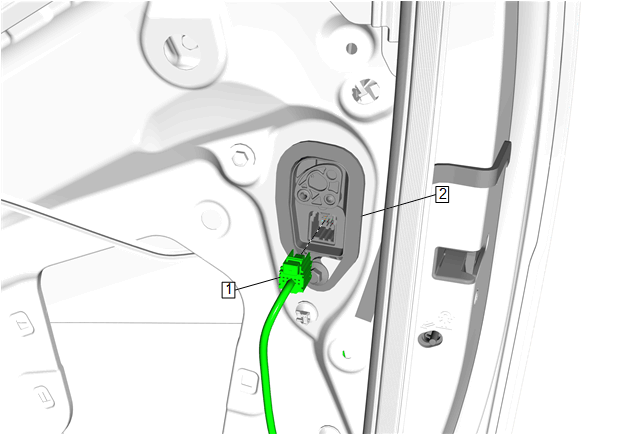

Electrical Connector (1) - Install @ Rear Side Door Outside Handle Bracket (2)

Courtesy of GENERAL MOTORS COMPANY

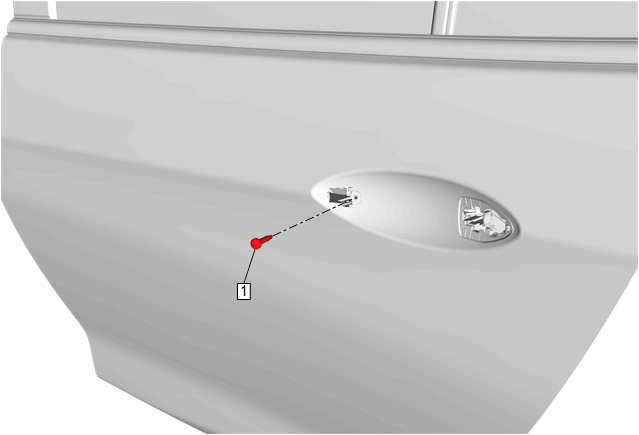

Rear Side Door Outside Handle Bracket Fastener (1) - Install and tighten 4.7 N.m (42 lb in)

Courtesy of GENERAL MOTORS COMPANY

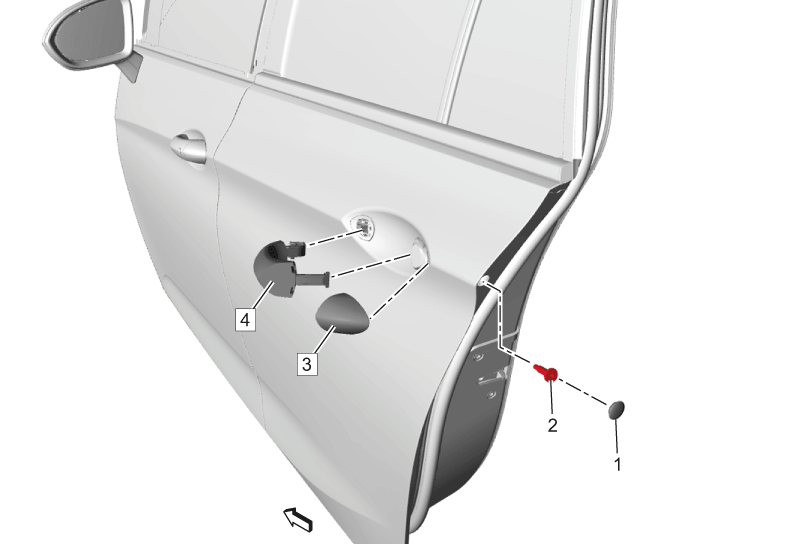

Rear Side Door Outside Handle (4) - Install - Rear Side Door Outside Handle Replacement (without Keyless Entry) Rear Side Door Outside Handle Replacement (with Keyless Entry)

Courtesy of GENERAL MOTORS COMPANY

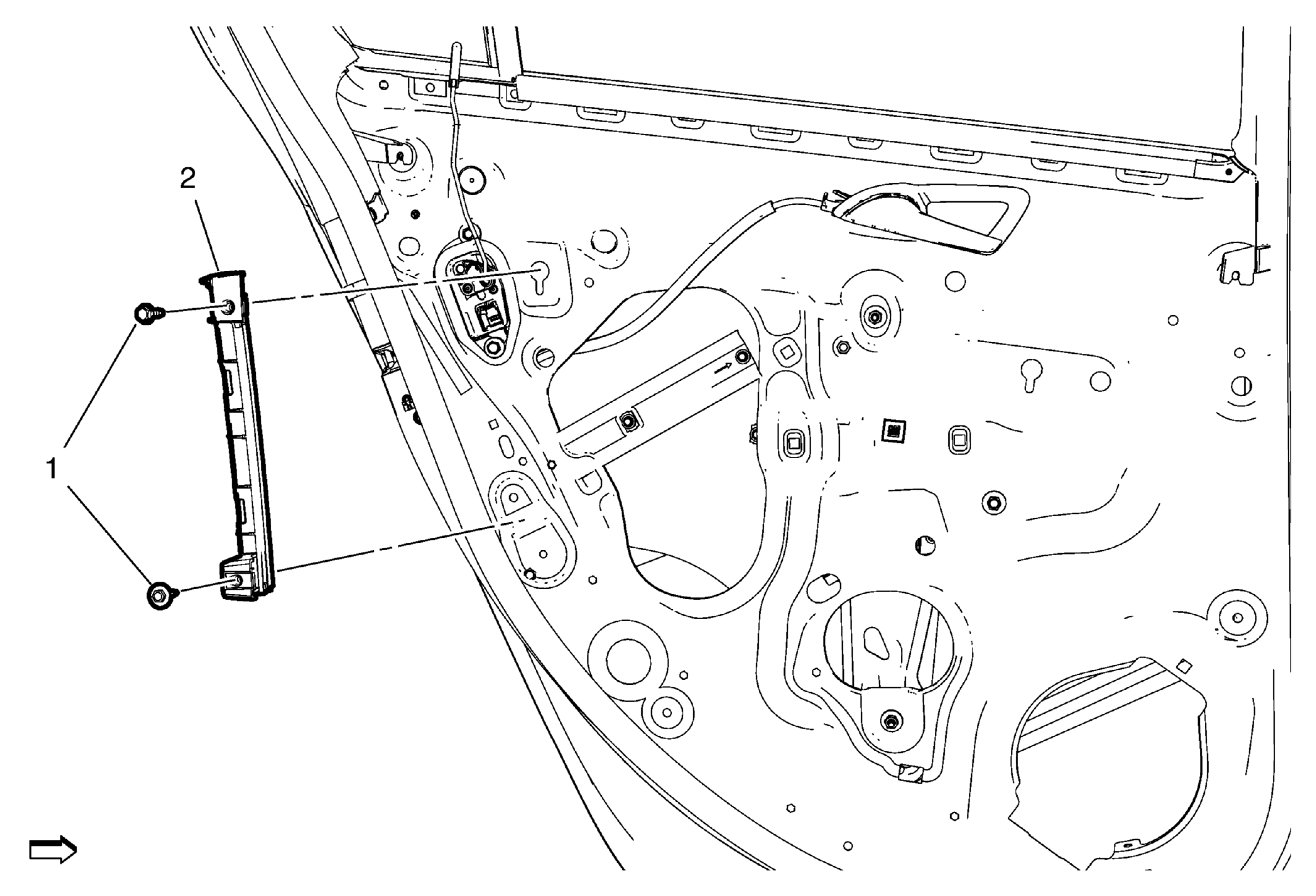

Rear Side Door Window Channel Rear Retainer (2) - Install Rear Side Door Window Channel Rear Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

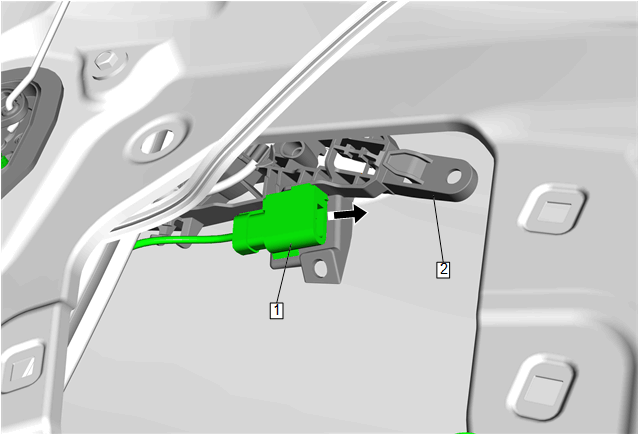

Rear Side Door Latch Electrical Connector (1) - Connect @ Rear Side Door Latch (2)

Courtesy of GENERAL MOTORS COMPANY

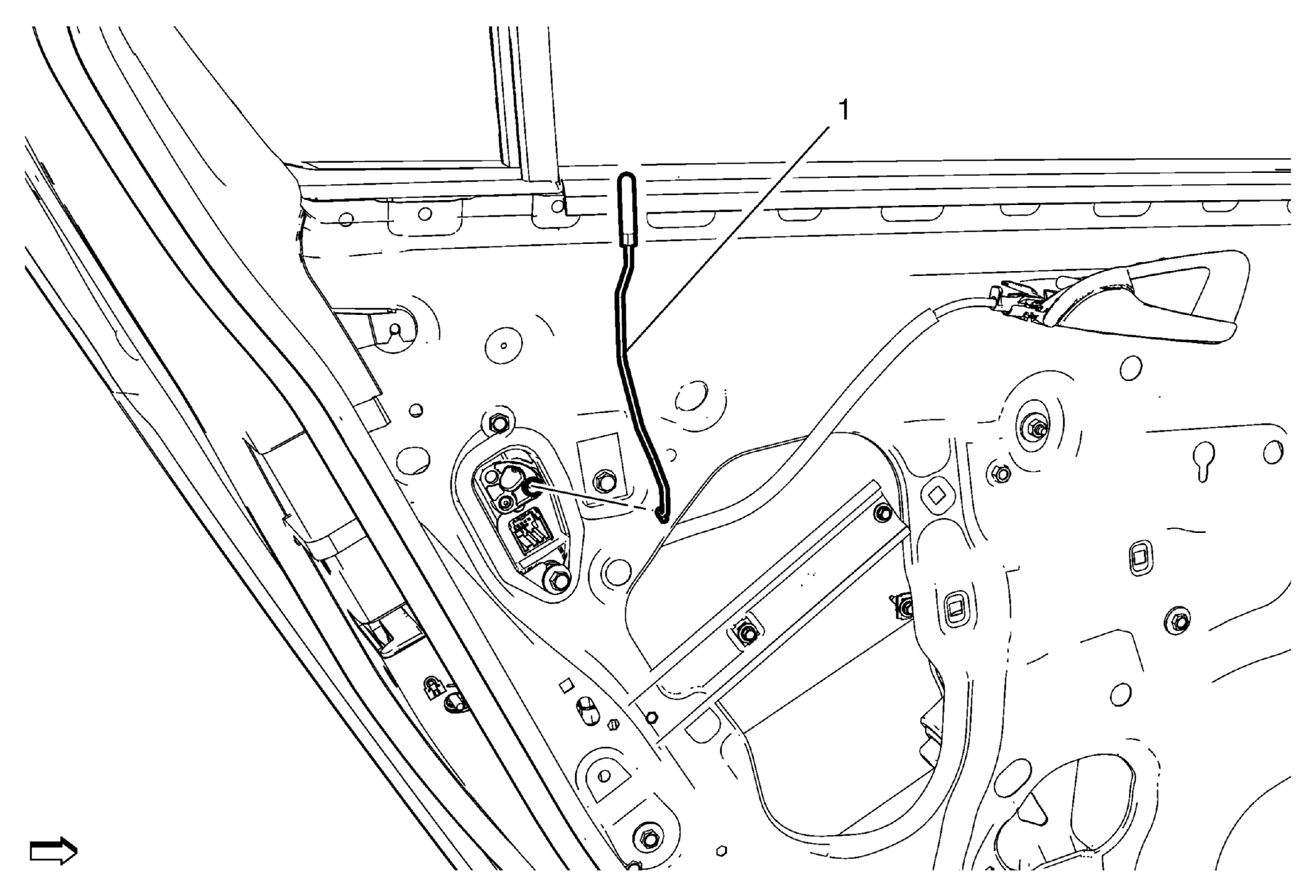

Rear Side Door Locking Rod Knob (1) - Install - Rear Side Door Locking Rod Knob Replacement

Courtesy of GENERAL MOTORS COMPANY

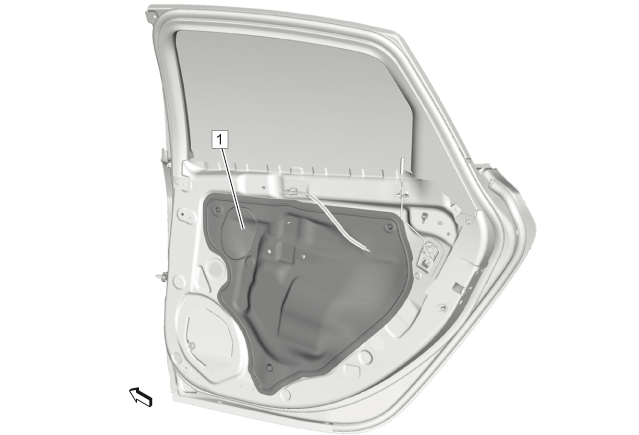

Rear Side Door Water Deflector (1) - Install - Rear Side Door Water Deflector Replacement
