UHF Short Range Low Energy Remote Control Access Transceiver Replacement

Courtesy of GENERAL MOTORS COMPANY

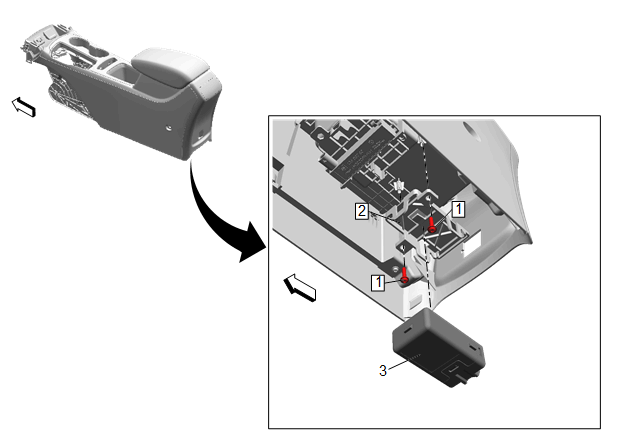

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement (D06)Front Floor Console Replacement (DBU)
1	UHF Short Range Low Energy Remote Control Access Transceiver Bracket Screw [2x] CAUTION: Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	UHF Short Range Low Energy Remote Control Access Transceiver Bracket
3	UHF Short Range Low Energy Remote Control Access Transceiver Procedure Disconnect the electrical connector. Release the retaining tabs.
