Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM2887181

    Install the radio antenna base (1).

  2. Connect the electrical connectors.

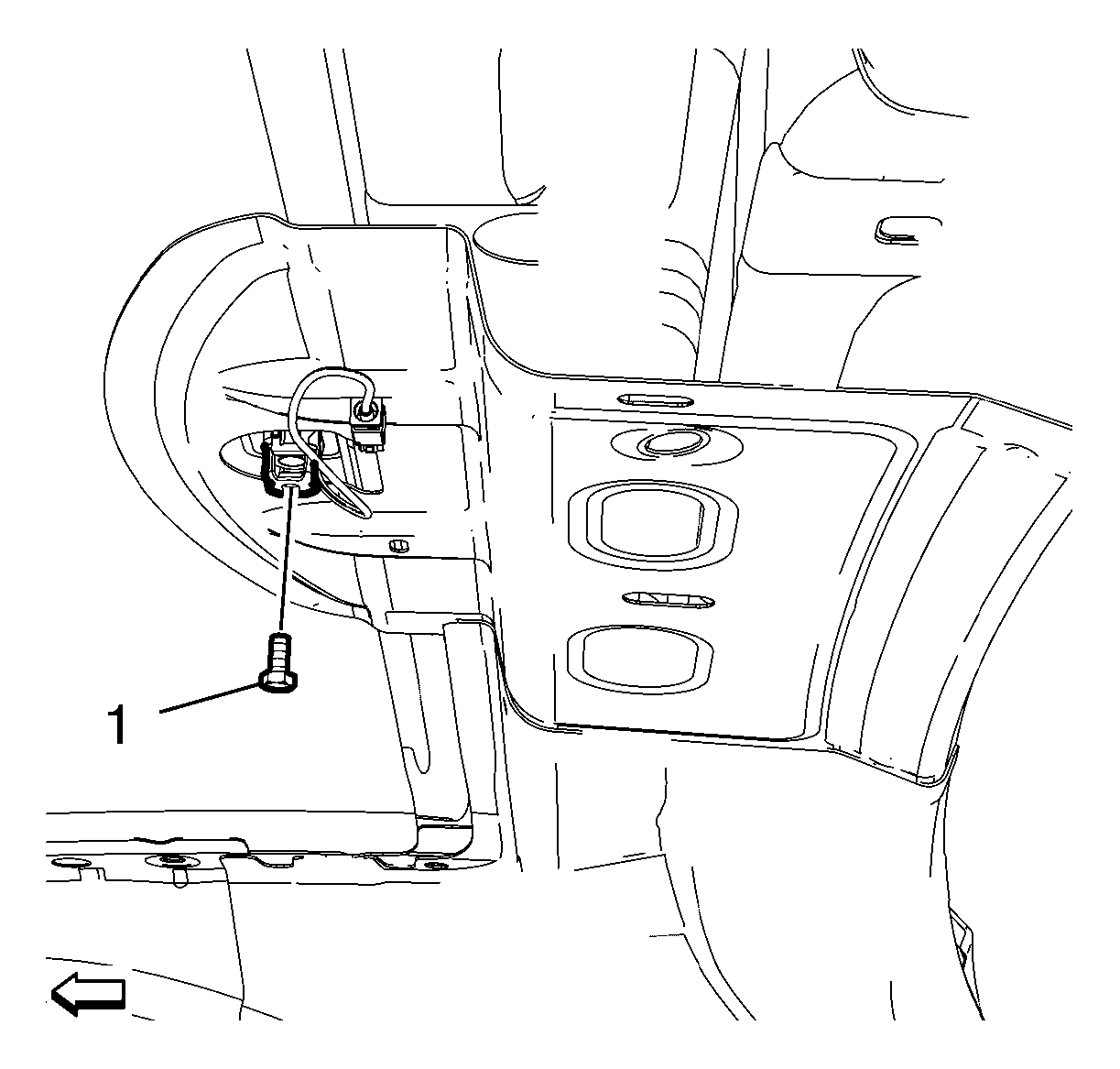

  3. GM2887179
    CAUTION:

    Refer to Fastener Caution .

    Install the radio antenna base bolt (1) and tighten to 9 N.m (80 lb in).

  4. Headlining Trim Panel - Install - Headlining Trim Panel Replacement (Notchback)Headlining Trim Panel Replacement (Hatchback) .
