Front End Inflatable Restraint Discriminating Sensor Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

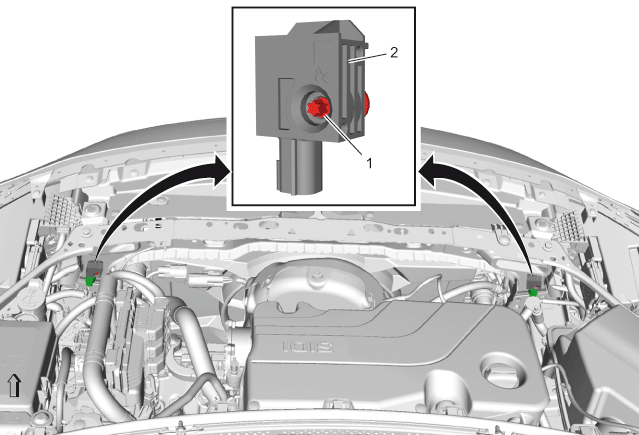

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Rear Intake Air Duct Replacement |
|
| 1 | Front End Inflatable Restraint Discriminating Sensor Fastener
CAUTION:
Procedure Loosen the fastener and slide the sensor out of the keyhole slot. Tighten 7.5 N.m (66 lb in) |
| 2 | Front End Inflatable Restraint Discriminating Sensor Procedure Disconnect the electrical connector.
NOTE:
The fastener is integral to the sensor assembly, DO NOT remove separately |
