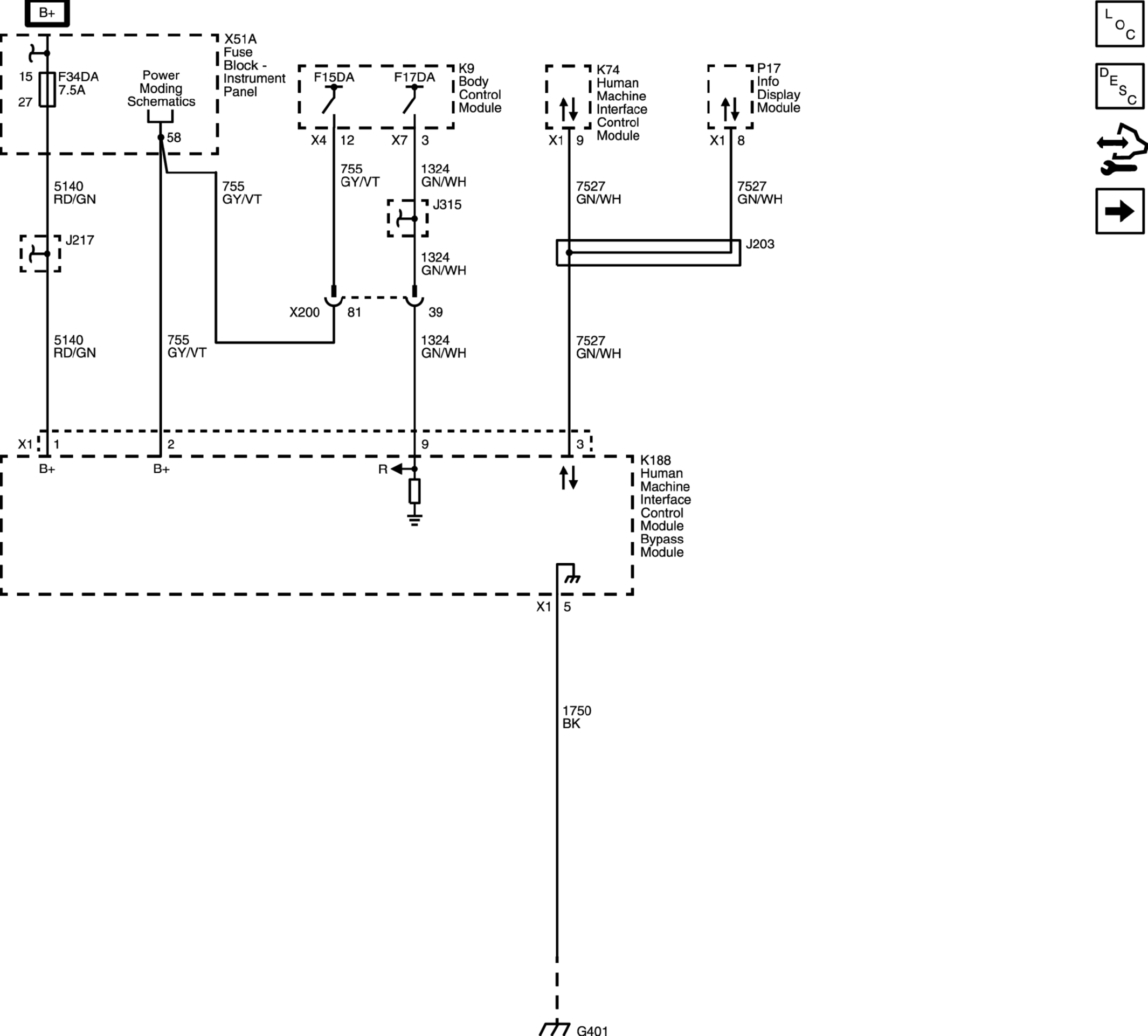

Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module

WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
