Engine Controls And Fuel - 2.8L (LWN) Diesel - Engine Controls Schematics
›
Schematic Wiring Diagrams
›
Engine Controls Wiring Schematics
›

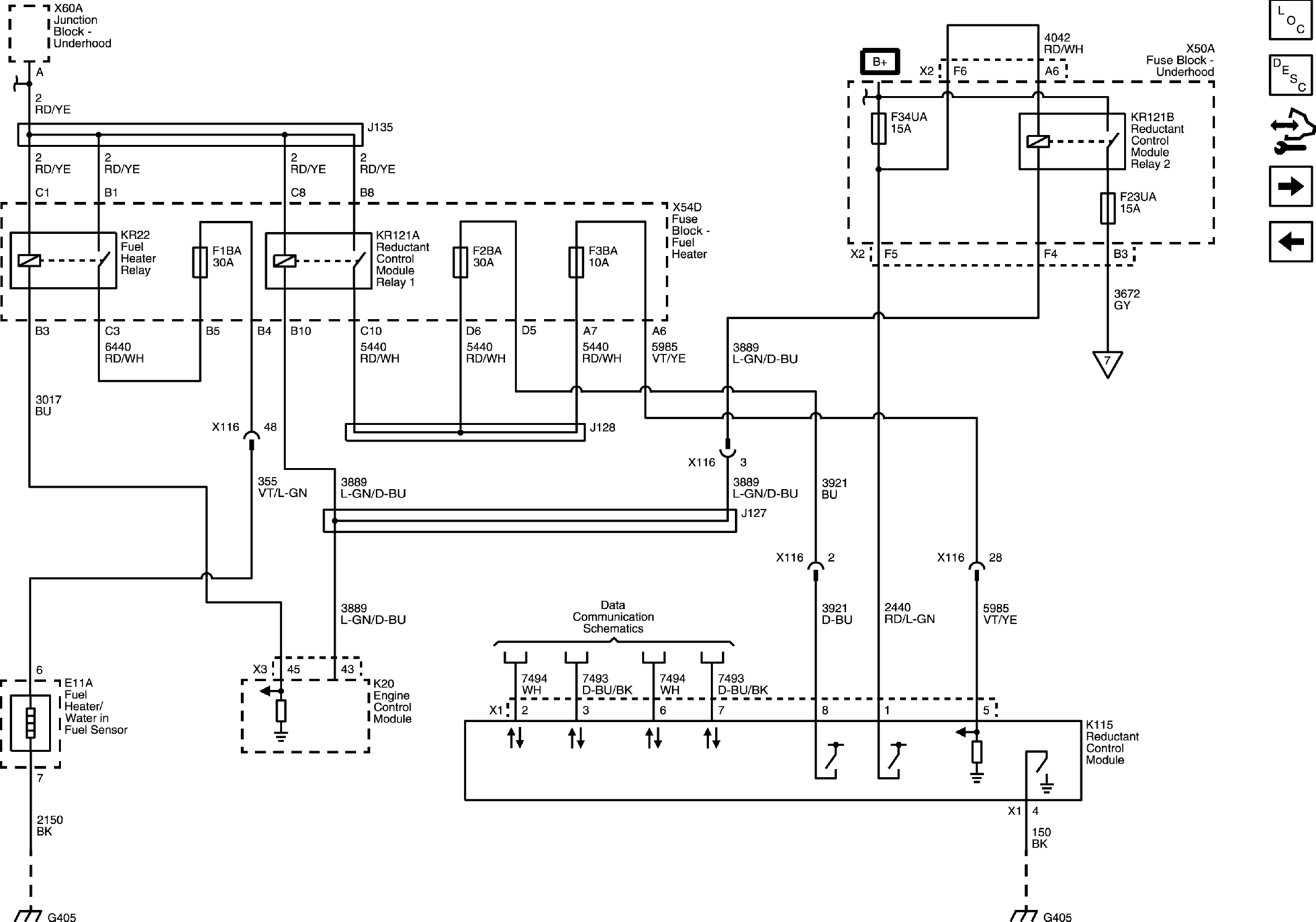

Emission Controls - Reductant Sensor Module
Emission Controls - Reductant Sensor Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
