Communication Interface Module Replacement
Communication Interface Module Replacement

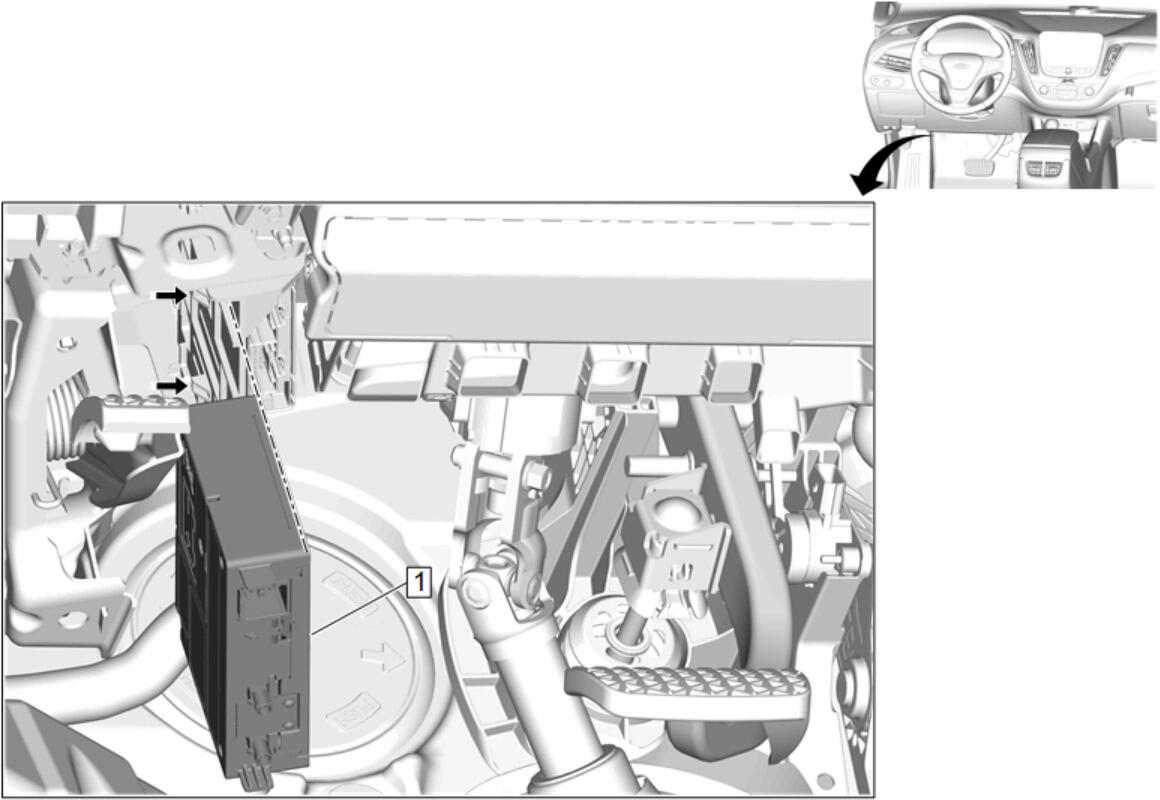

Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Communication Interface Module
Procedure
Release the retaining tabs.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:
Control Module References
