Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Keyless Entry Control Module (1) - Install
Secure the retaining tabs.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.
Work your way rearward engaging the front side door sill garnish molding retaining clips.
Front Side Door Sill Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Seat Adjuster Track Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

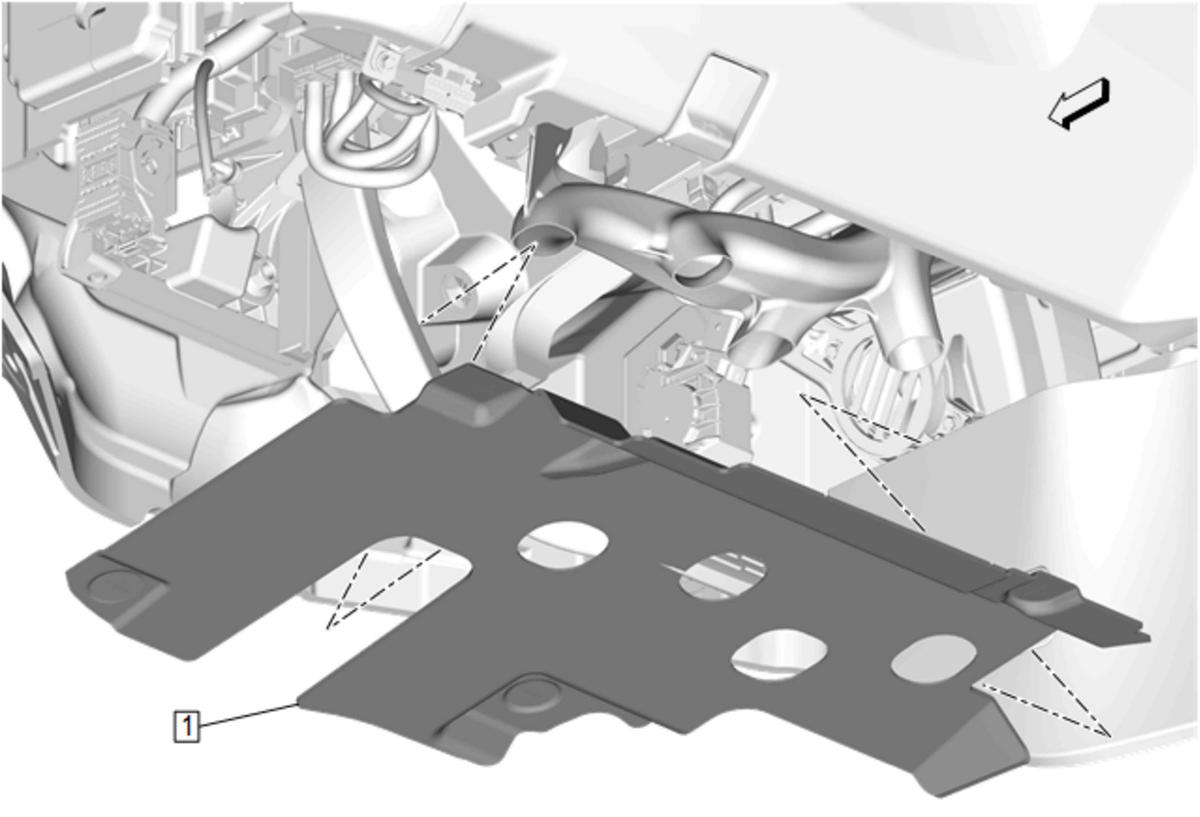

{If equipped} Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

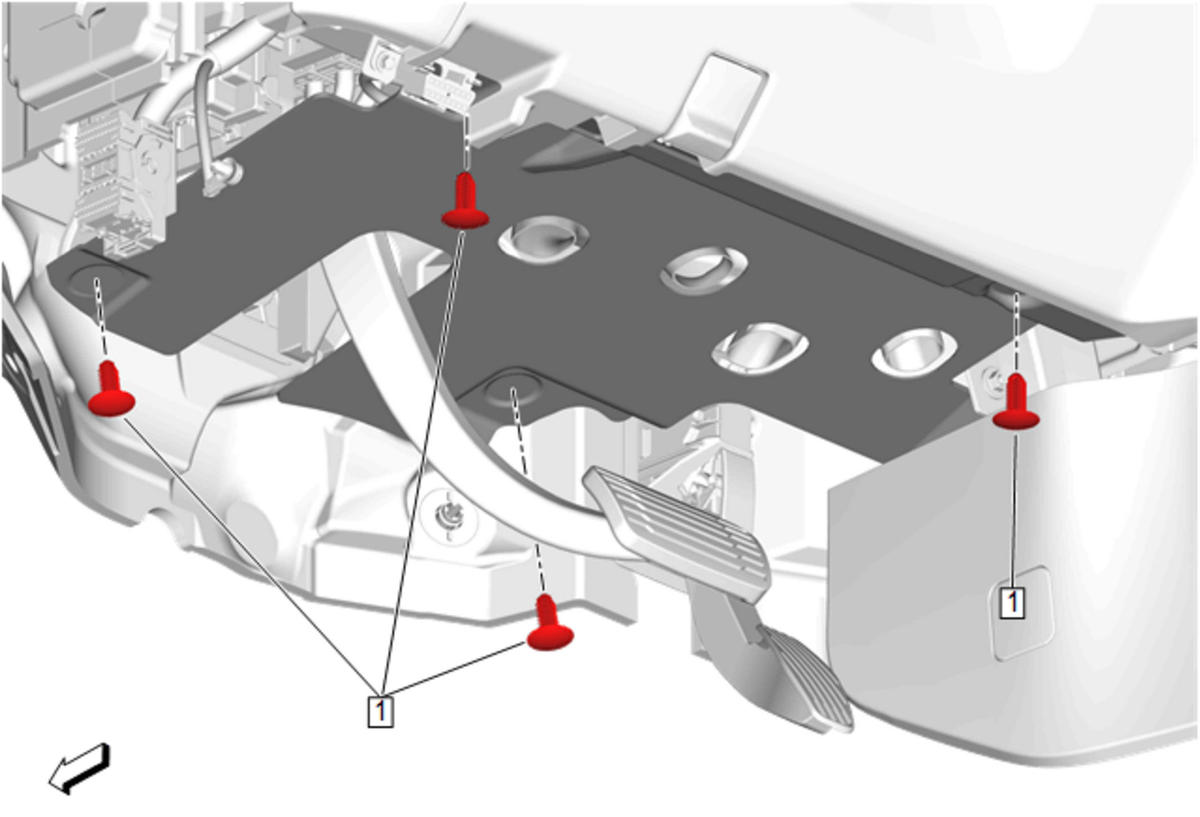

{If equipped} Instrument Panel Lower Insulator Retainer (1) - Install [4x]
Perform the necessary programming and setup procedure: Control Module References
