Installation Procedure

  1. GM5161805Courtesy of GENERAL MOTORS COMPANY

    Remote Function Actuator Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM5163264Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Ensure the right side seat belt webbing in not caught by panel clip tower and is in front of it.

  5. Body Lock Pillar Garnish Molding-Right Side (3) - Install
    6. CAUTION:

    Refer to Fastener Caution .

  6. Body Lock Pillar Garnish Molding Bolt - Right Side (2) - Install and tighten - Fastener Specifications
  7. Center Pillar Upper Trim Panel Bolt Cap-Right Side (1) - Install

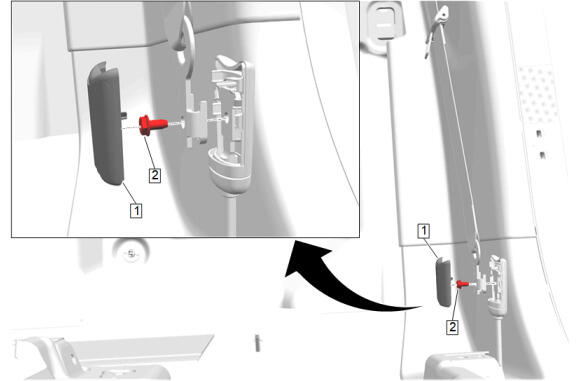

  8. GM5969473Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Seat Belt Anchor Plate Tensioner Bolt-Right Side (2) - Install and tighten - Fastener Specifications

  9. Front Seat Belt Anchor Plate Tensioner Cover-Right Side (1) - Install
  10. GM5158756Courtesy of GENERAL MOTORS COMPANY

    Rear Window Lower Garnish Molding-Right Side (1) - Install

  11. Install the front center seat. Front Center Seat Removal and Installation
  12. Enable the SIR System. SIR Disabling and Enabling
