Rear Door Lock Cylinder Replacement

Courtesy of GENERAL MOTORS COMPANY

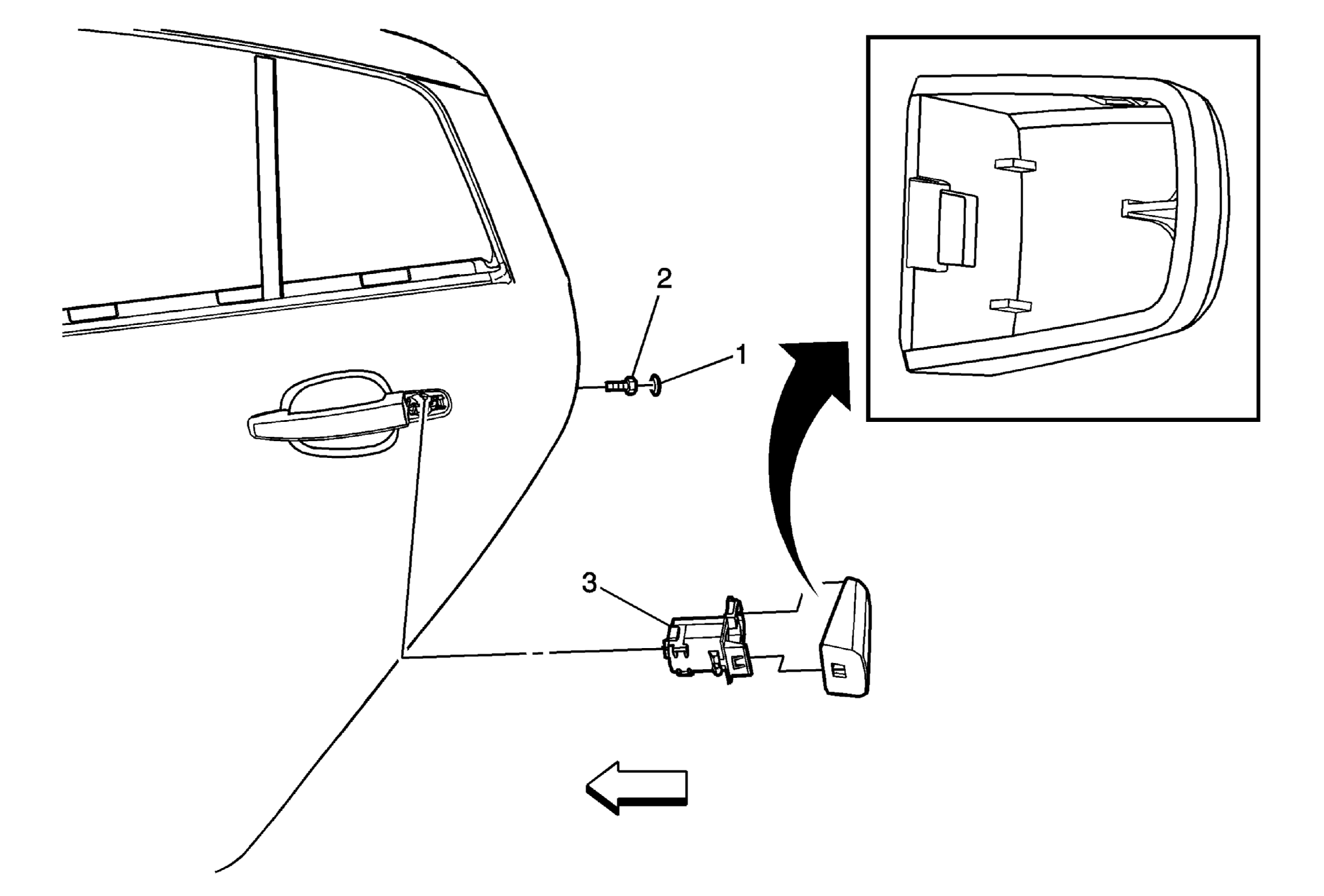

Callout	Component Name
1	Rear Side Door Lock Cylinder Opening Cover Screw Access Plug TIP:  Use a flat-bladed tool to remove the cover.
2	Rear Side Door Lock Cylinder Clamp Screw CAUTION: Refer to Fastener Caution . Procedure  Do Not remove the cylinder screw completely from the housing. unscrew the screw to a hard stop, remove the cylinder. Tighten  5 N.m (44 lb in)
3	Rear Side Door Lock Cylinder Procedure  Remove the lock cylinder cover. Refer to Rear Side Door Lock Cylinder Opening Cover Replacement .
