Data Communications System
›
Schematic and Routing Diagrams
›
Body Control System Wiring Schematics
›

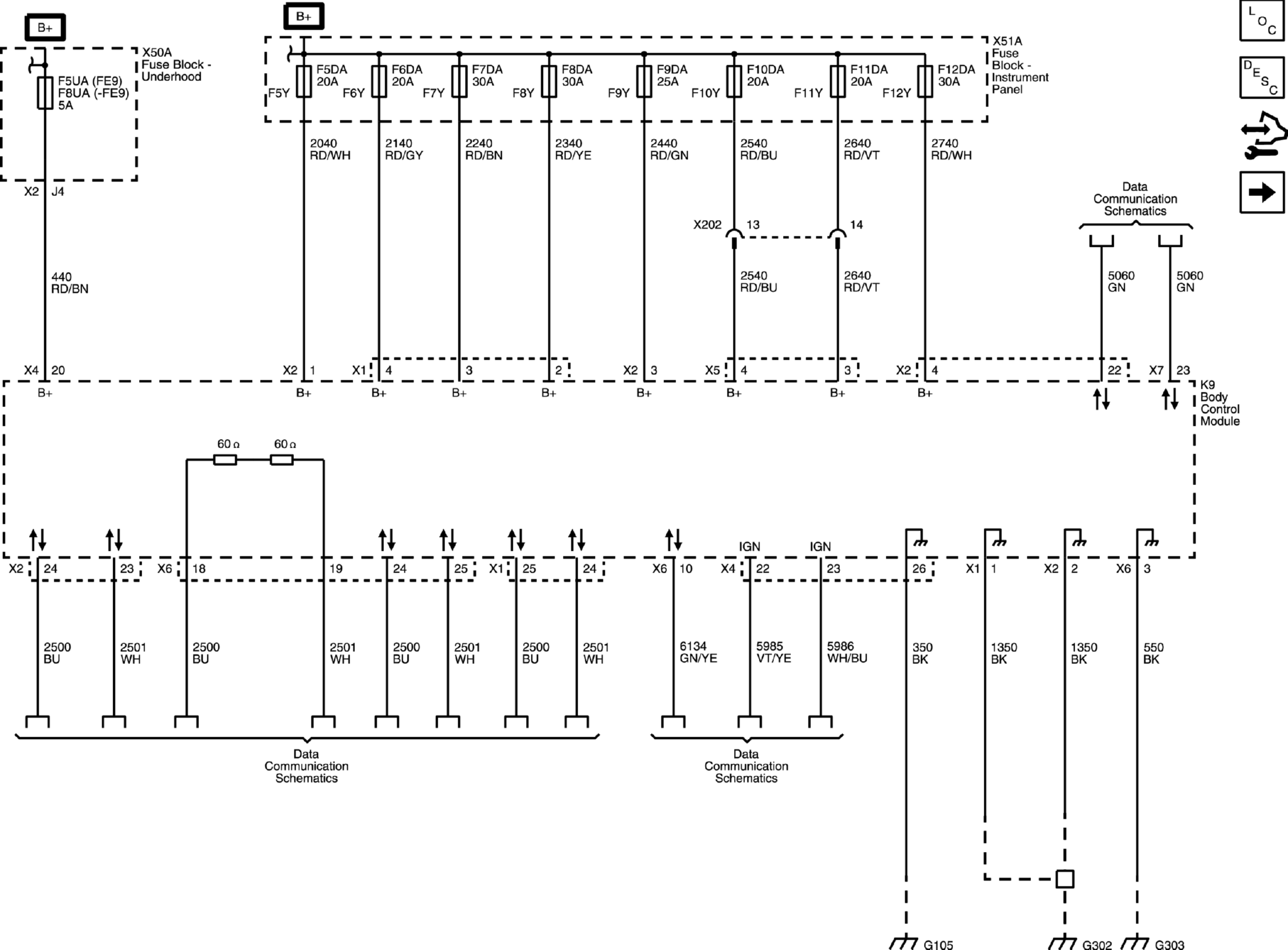

Power, Ground, Data Communications, and Subsystem References (1 of 5)
Power, Ground, Data Communications, and Subsystem References (1 of 5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
