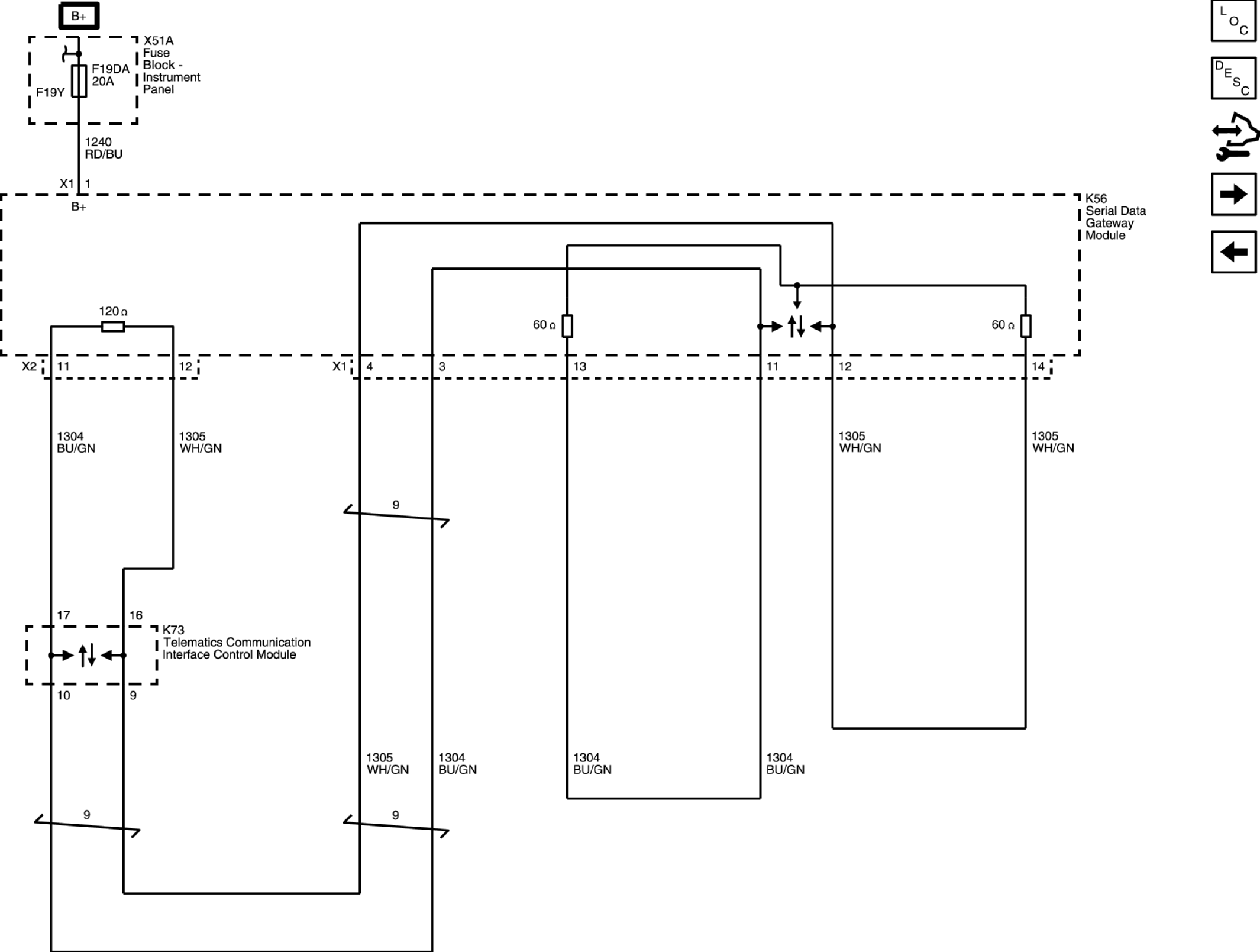

Home › Chevrolet › 2019 › Sonic LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communications System › Schematic and Routing Diagrams › Data Communication Wiring Schematics › Isolated High Speed GMLAN
