Engine Controls/Fuel - 1.4L (LUV) - Engine Controls Schematics
›
Schematic and Wiring Diagrams
›
Engine Controls Wiring Schematics
›

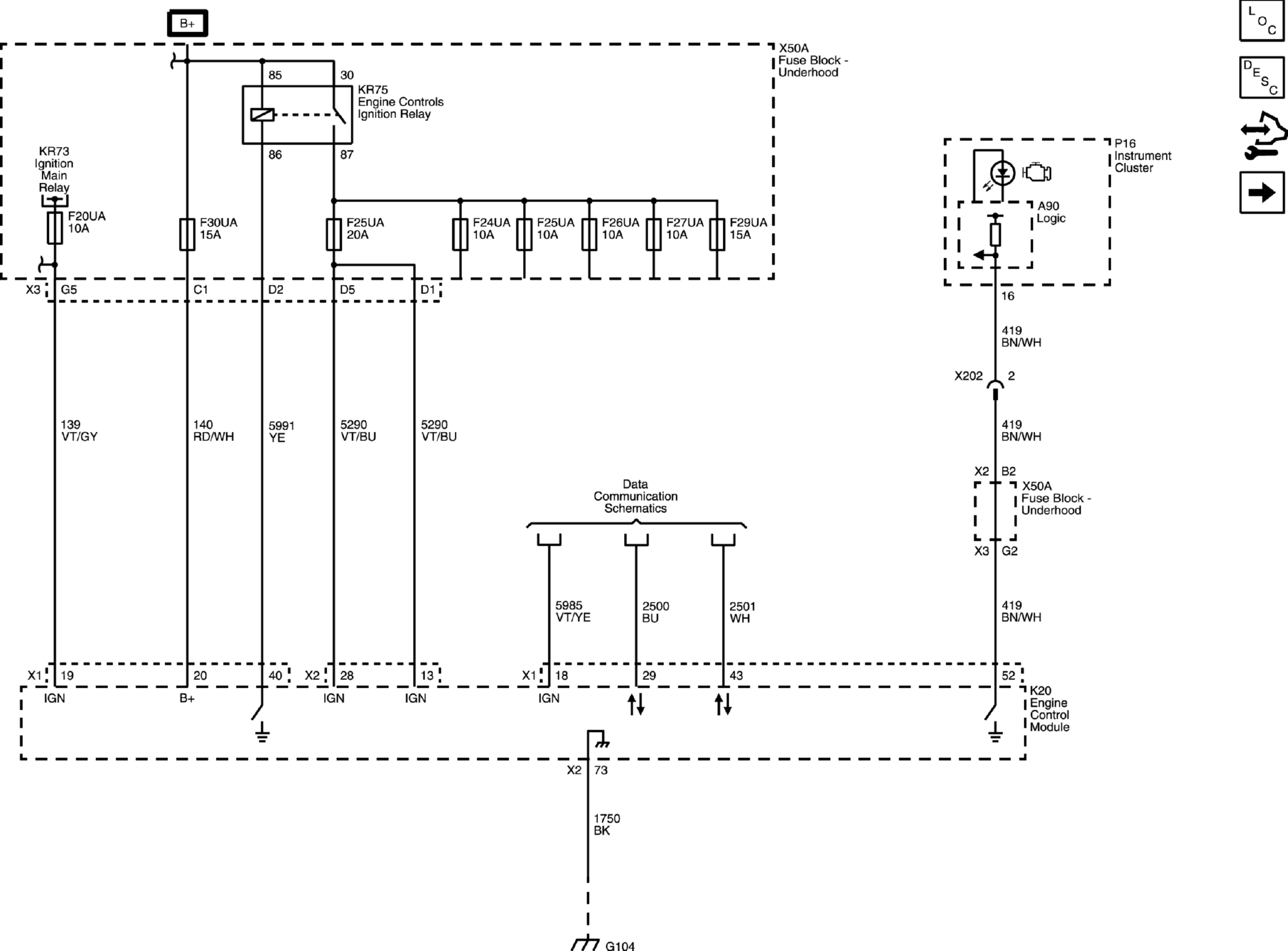

Module Power, Ground, Serial Data, and MIL
Module Power, Ground, Serial Data, and MIL
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
